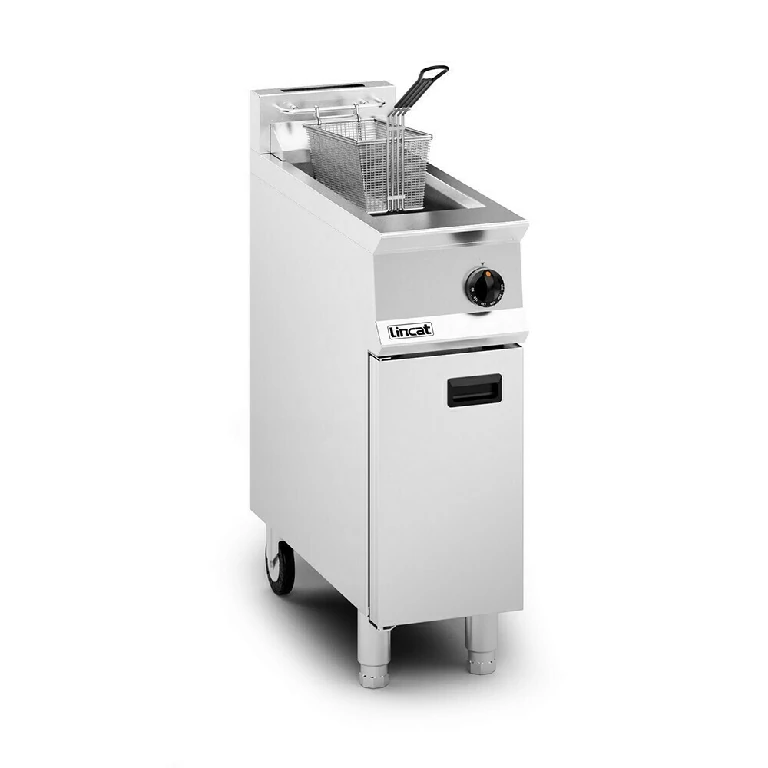

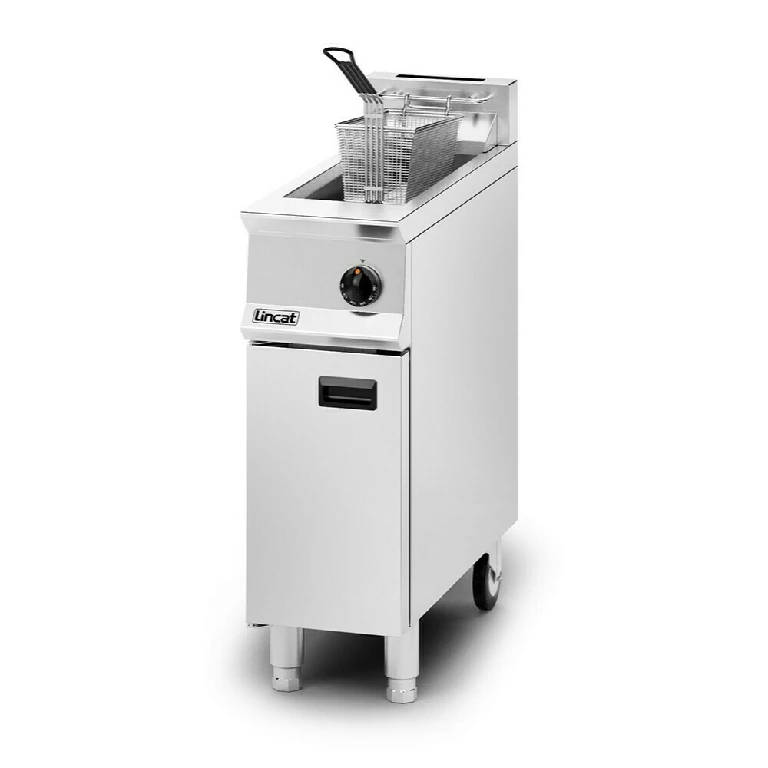

OG8110/P - Lincat Opus 800 Propane Gas Free-standing Single Tank Fryer

Summary

Brand Lincat

Range Opus 800

Power Type Gas

Gas Type Propane Gas

Unit Type Free-standing

Available in UK Only No

UK Warranty 2 Years Parts and Labour Warranty

Export Warranty Contact your local dealer

GTIN 5056105103127

Power and Performance

BTU per Hour 54,592

Total Power kW 16.0

Temperature Range °C 90-190

Temperature Control Mechanical

Key Specifications

Number of Baskets 1

Number of Tanks 1

Gravity Filtration No

Pumped Filtration No

Drain Location Through the body

Capacity

Product Output per Hour 22kg chips - 12mm [frozen], 32kg chips - 12mm [chi

Capacity Litres 14

Weights and Dimensions

Unit Height (External) mm 1,020

Unit Width (External) mm 300

Unit Depth (External) mm 815

Net Weight Kg 70

Supply Connections

Requires Installation Yes

Requires Electrical Supply No

Gas Connection BSP 1/2"

Gas Consumption at full rate Propane m³ per Hour 1.14

Gas Pressure Propane mbar 37.0

Total heat input at full rate Propane kW 16.0

Total heat input at full rate Propane BTU per hour 54,594

Shipping

Packed Weight Kg 77

Packed Height cm 122

Packed Width cm 85

Packed Depth cm 45

Download Tech Spec
