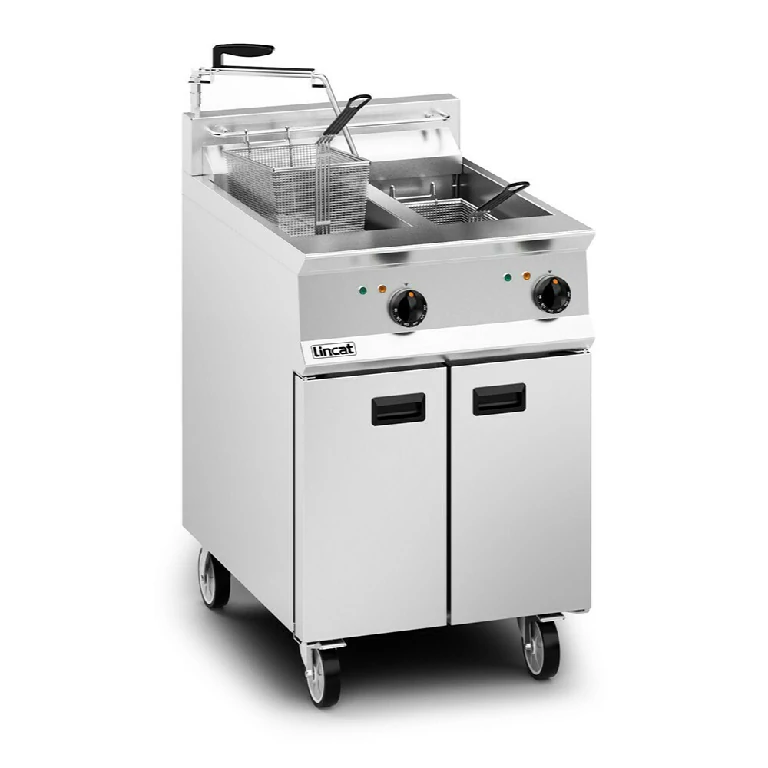

Lincat Opus 800 Electric Free-standing Twin Tank Fryer with Pumped Filtration - 2 Baskets - W 600 mm - 24.0 kW

Summary

Brand Lincat

Range Opus 800

Power Type Electric

Unit Type Free-standing

Available in UK Only No

UK Warranty 2 Years Parts and Labour Warranty

Export Warranty Contact your local dealer

GTIN 5056105102977

Power and Performance

Total Power kW 24.0

Temperature Range °C 90-190

IP Rating IP24

Temperature Control Mechanical

Key Specifications

Number of Baskets 2

Number of Tanks 2

Gravity Filtration No

Pumped Filtration Yes

Drain Location Through the body

Capacity

Product Output per Hour 64kg chips - 12mm [frozen], 84kg chips - 12mm [chi

Capacity Litres 2 x 15.0

Weights and Dimensions

Unit Height (External) mm 1,070

Unit Width (External) mm 600

Unit Depth (External) mm 800

Net Weight Kg 104

Supply Connections

Requires Installation Yes

Requires Electrical Supply Yes

UK 3 Pin Plug No

Requires Hardwiring Yes

Electrical Supply Rating Watts 24,000

Three Phase Amps L1/L2/L3= 34.8 [1 cab]; L1/L2/L3= 2 x 17.4 [2 cab]

Three Phase Voltage 400
