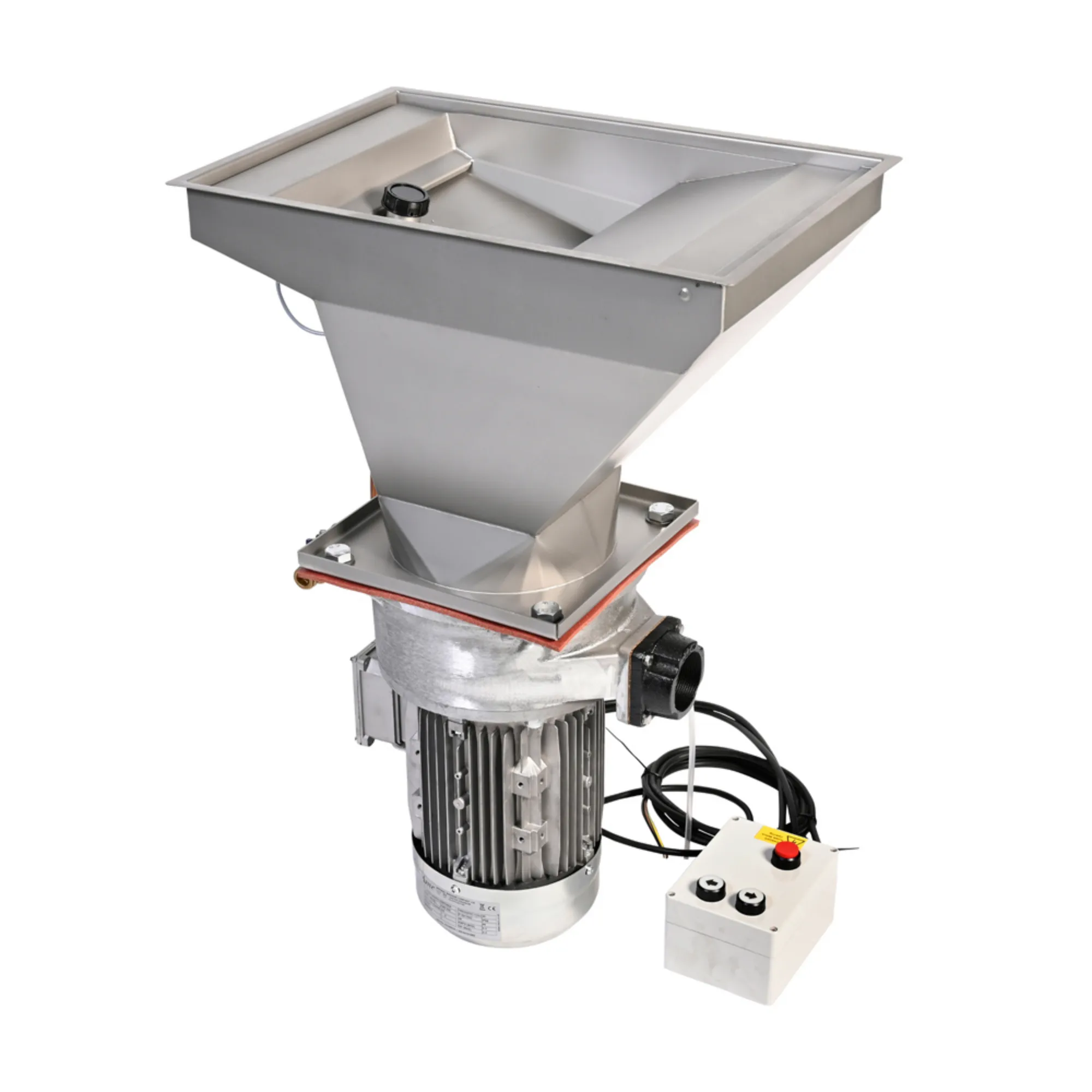

IMC Vulture 825 In-tabling Food Waste Disposer - 3 Phase [4 wire] - W 360 mm - 2.2 kW - F68/121

- Brand: IMC

- Range: Vulture

- Series: 800 Series

- Power Type: Electric

- Unit Type: Welded into tabling

- Available in UK Only: No

- UK Warranty: 2 Years Parts and Labour Warranty

- Export Warranty: Contact your local dealer

- Mounting: In-tabling

- GTIN: 5056105199649

Power and Performance:

- Total Power: 2.2 kW

- Horsepower (HP): 3

- IP Rating: IP55

Key Specifications:

- Operator Safety: Interlocks

- Airbreak: No

Capacity:

- Type of Waste: Tough waste

- Covers Per Sitting: 1350

- Capacity: 600 Kg per Hour

Weights and Dimensions:

- Unit Height (External): 783 mm

- Unit Width (External): 360 mm

- Unit Depth (External): 530 mm

- Net Weight: 51 Kg

Supply Connections:

- Requires Installation: Yes

- Requires Electrical Supply: Yes

- UK 3 Pin Plug: No

- Requires Hardwiring: Yes

- Electrical Supply Rating: 2200 Watts

- Three Phase Amps: 5.3

- Three Phase Voltage: 400

- Water Supplied From: Storage cistern

- Water Connection Pressure: 0.4 Bar

- Drain Connection: 2" BSP threaded flange, connected to 54mm piping

- Water Connection: 15mm
