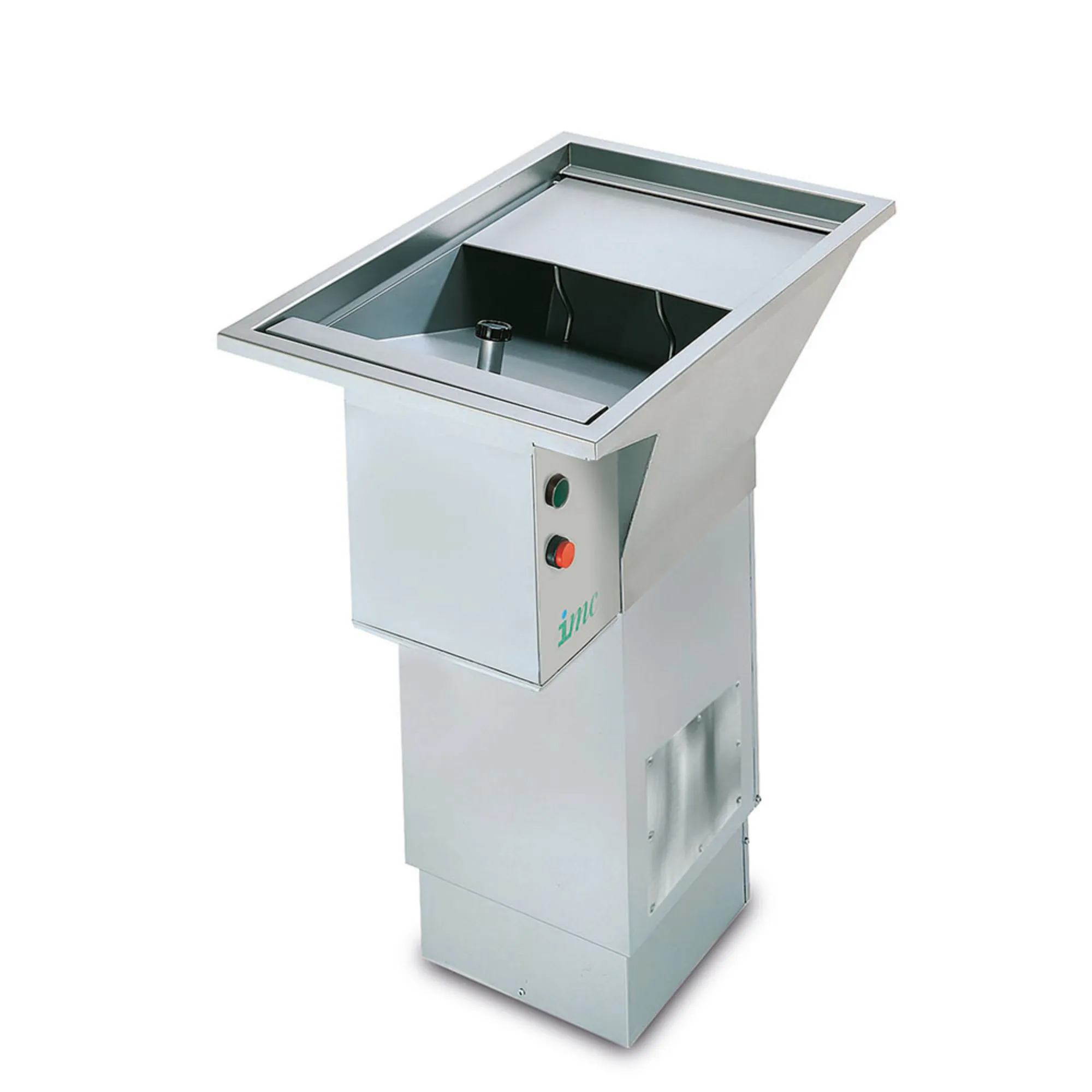

IMC Vulture 1204 Floor-mounted Food Waste Disposer - 3 Phase [4 wire] - W 514 mm - 2.2 kW - F54/220

- Brand: IMC

- Range: Vulture

- Series: 04 Series

- Power Type: Electric

- Unit Type: Floor-mounted or welded into tabling (optional)

- Available in UK Only: No

- UK Warranty: 2 Years Parts and Labour Warranty

- Export Warranty: Contact your local dealer

- Mounting: Floor-mounted

- GTIN: 5056105199069

**Power and Performance**

- Total Power: 2.2 kW

- Horsepower: 3 HP

- IP Rating: IP55

**Key Specifications**

- Operator Safety: Interlocks

- Airbreak: No

**Capacity**

- Type of Waste: Tough waste

- Covers Per Sitting: 1450

- Capacity: 700 Kg per Hour

**Weights and Dimensions**

- Unit Height (External): 850 mm

- Unit Width (External): 514 mm

- Unit Depth (External): 740 mm

- Net Weight: 74 Kg

**Supply Connections**

- Requires Installation: Yes

- Requires Electrical Supply: Yes

- UK 3 Pin Plug: No

- Requires Hardwiring: Yes

- Electrical Supply Rating: 2200 Watts

- Three Phase Amps: 4.8

- Three Phase Voltage: 400

- Water Supplied From: Storage cistern

- Water Connection Pressure: 0.18 Bar

- Drain Connection: 2" BSP threaded flange, connected to 54mm piping

- Water Connection: 22mm
