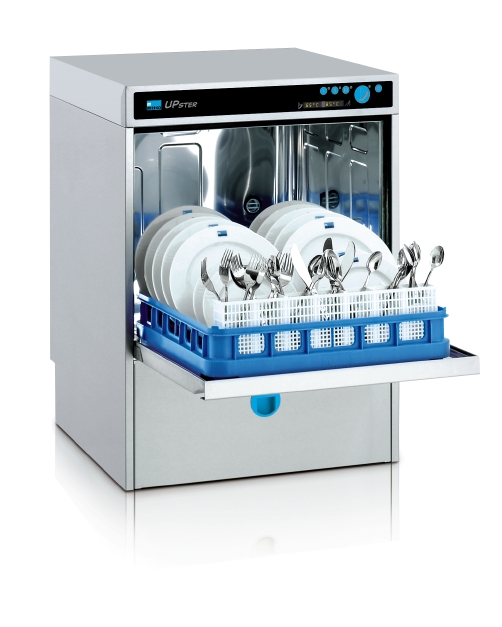

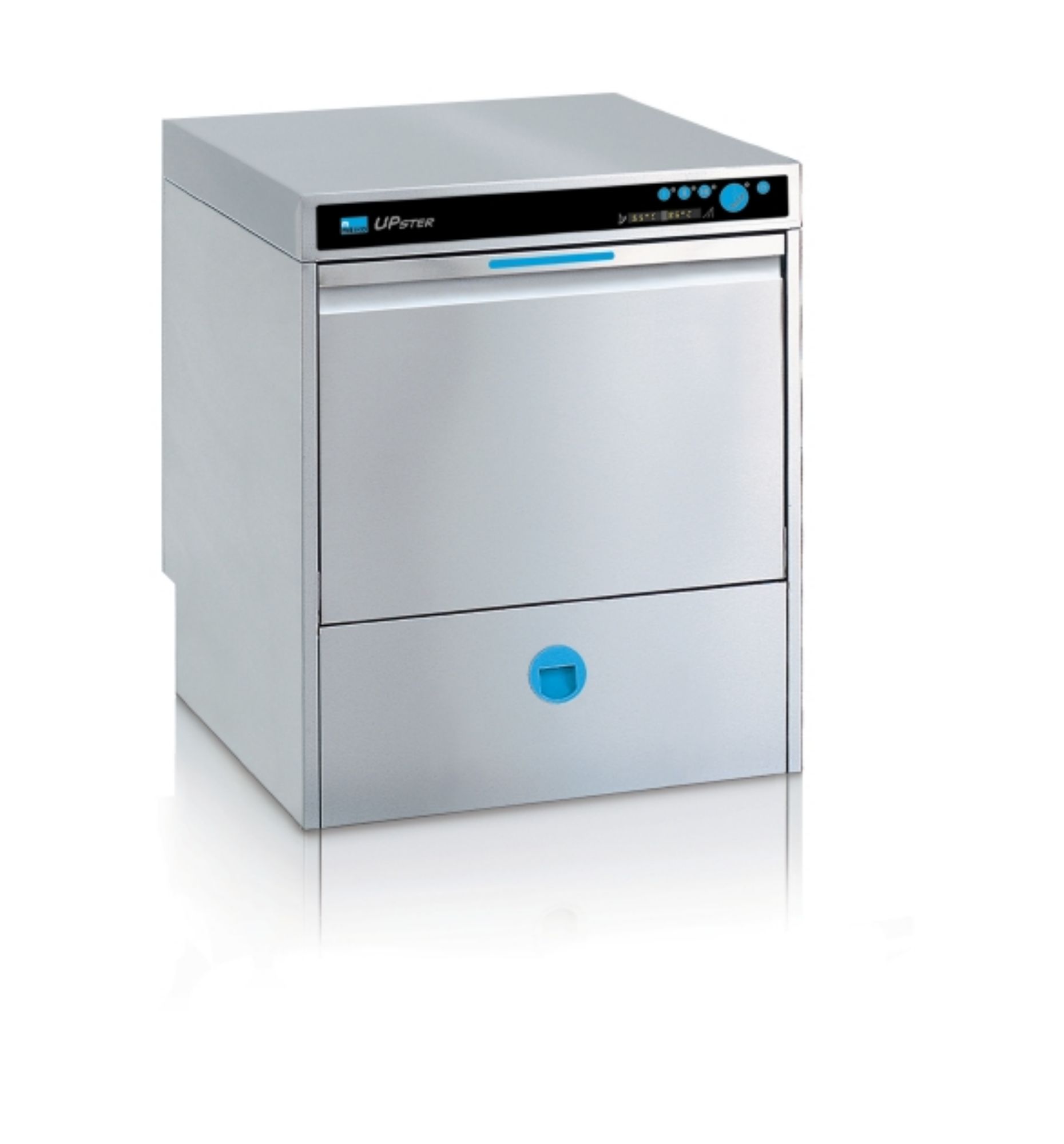

UPster U500 Front Loading Dishwasher
2
UPster U500 Front Loading Dishwasher
2
UPster U500 Front Loading Dishwasher
UPster U500 Front Loading Dishwasher

UPster U500 Front Loading Dishwasher

UPster Undercounter dishwashers
Prices from
6575.89 +VAT
€8,088.34 inc vat
Earliest Possible Delivery is 03-07-2024 (42 Day)
Product Range
Info
Technical Details
Downloads
Videos
Info
UPster U500 Front Loading Dishwasher
Product Code: U500
SID: 111
Size (H x W x D)::
820 x 600 x 600
In Stock
RRP €8924.64
€6575.89 +VAT
Back Order Now
add
Technical Details
UPster U500 Front Loading Dishwasher
Up to 720 dinner plates per hour
(Dependent upon electrical and water temperature connections)
Dimensions: 600 x 600 x 820mm
Passing height of 420mm
Basket size 500mm x 500mm
Electrics: 230/50/1phase or 400/50/3phase

Capacity : 40 racks per hour
Hot fill only 13amp : 2.71 kW
50ºC hot fill or 10ºC cold fill 1 phase : 4.71 kW
50ºC hot fill or 10ºC cold fill 3 phase : 6.71 kW

Product listed in WRAS water fittings and materials directory. Certificate No. 1604078. Suitable for backflow protection against fluid category 5.
Downloads
UPster U500 Front Loading Dishwasher
Videos
UPster U500 Front Loading Dishwasher
Description
UPster U500 front loading dish washing machine. Machine constructed throughout in type 304 (1.4301) high grade stainless steel and with full external stainless steel cladding.  Additional features include pressed tank with large radius coved corners, double wall construction for excellent sound and heat insulation, and sloped internal upper wash tank surfaces to prevent dripping onto clean items.
Product Features
90/120/240 second programme cycle
Water connection 1 x 22 mm ¾”BSP
Suitable for a softened hot or cold water supply
Water supply pressure 1-5 bar
Minimum flow rate 5lt/min
Tank fill capacity 11lt
Final rinse consumption 2.6lt/basket
Waste connection 1 x 40mm Ø standing waste
Wash pump motor rating of 0.55 kW
Detergent and rinse aid dosing pump with containers
Hose and cable connection kit
Drain pump for high level waste outlet
Soft start feature on wash pump
Rotating upper and lower rinse and wash arms
Touchpad controls (no switches)
MIKE 2 infrared interface for exchange of data services
Integral class ‘AA’ air gap with rinse booster pump
Self-cleaning cycle after drain down
Two (2) finger type plate racks
One (1) open type cup/bowl rack
Two (2) eight compartment cutlery racks
