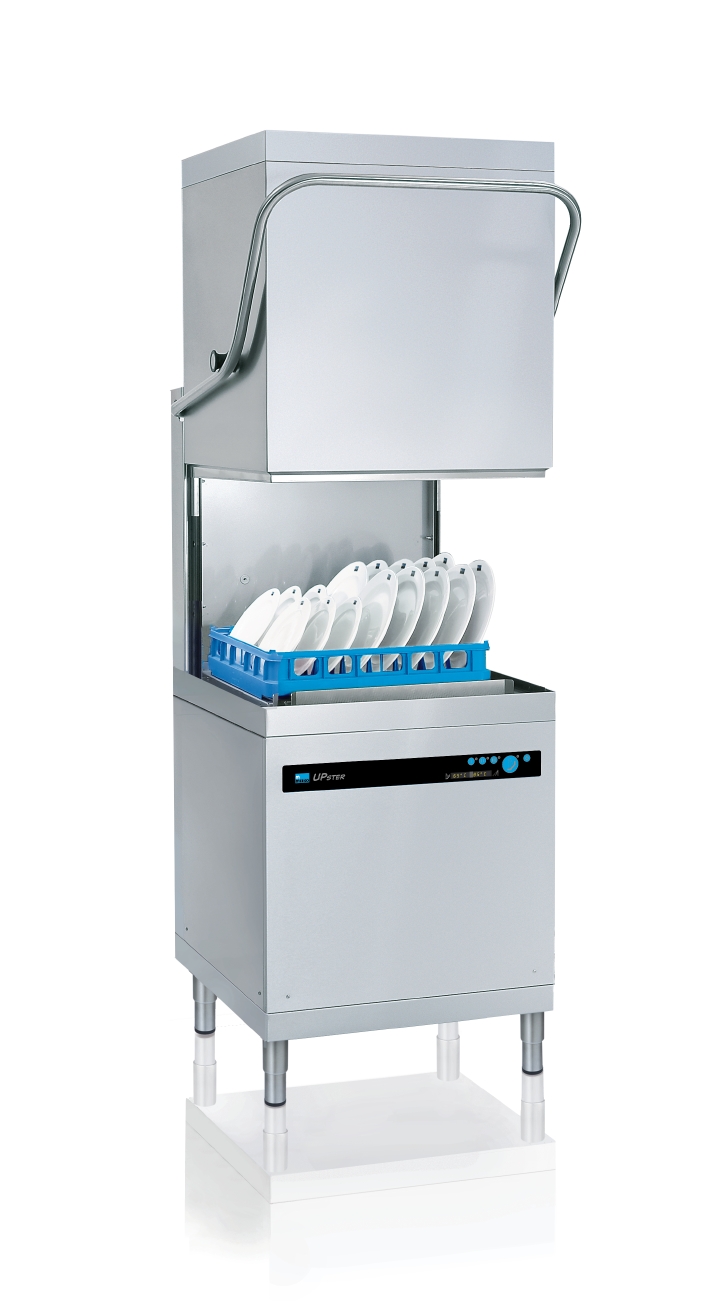

UPster H500 AC Pass-through Dishwasher - H500 AC

UPster Pass-through dishwashers
Delivery
Finance
Available
UPster H500 AC Pass-through Dishwasher - H500 AC
SKU: H500 AC
Size: 2140 x 635 x 750
In stock icon In stock
Sale: €14416.16 +VAT
RRP €22430.04 +VAT
i h
Financing Weekly from €111.44

- Up to 720 dinner plates per hour (Dependent upon electrical and water temperature connections)

- Dimensions: 635 (w) x 750 (d) x 2140 mm (h) (Top of AC unit)

- Passing height: 440 mm

- Basket size: 500 mm x 500 mm

- Electrics: 400/50/3 phase

- Capacity: 40 racks per hour

- 10°C cold fill 3 phase: 9.71 kW

- Product listed in WRAS water fittings and materials directory. Certificate No. 1607063.

💳 Payment Terms

✅ Caterboss 60/40 Plan

Pay just 60% upfront, and spread the remaining 40% over 12 weeks.

  • ✔️ 0% interest
  • ✔️ No fees or hidden charges
  • ✔️ No credit checks required
  • ✔️ Instant approval – no paperwork
  • ✔️ Perfect for fast-moving businesses

🎥 Watch our quick explainer video

✅ Lease Hire Finance

Spread the full cost over 1–5 years through trusted finance partners.

  • ✔️ Keep cash reserves intact
  • ✔️ Fixed monthly payments
  • ✔️ Available on most large equipment
  • ✔️ Competitive rates
  • ✔️ Suitable for new and established businesses

📄 Apply online for either option at:
www.caterboss.ie/finance-application

Need help deciding? Contact us anytime for tailored advice.

Description

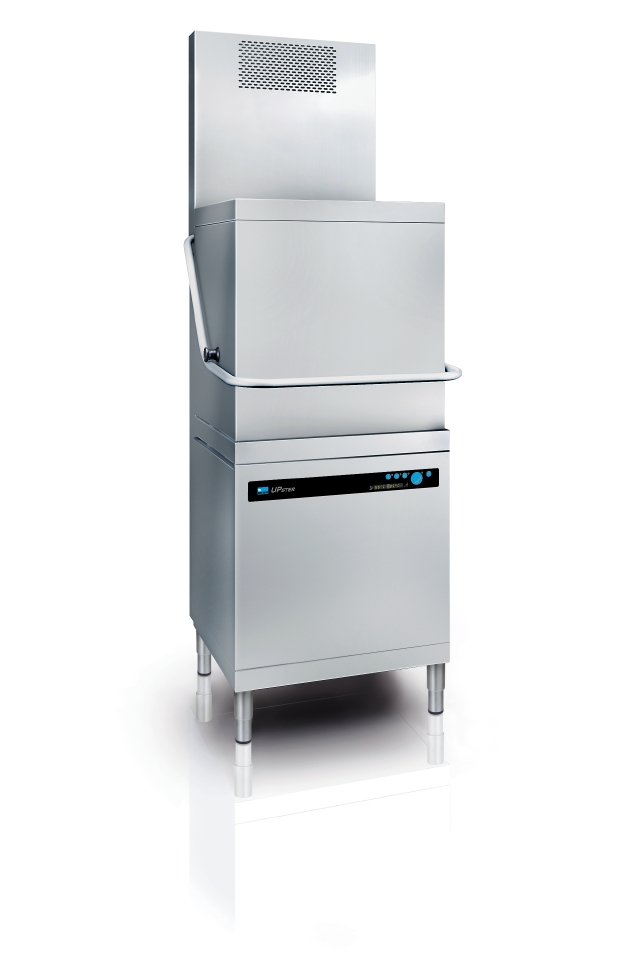

The UPster H500 AC pass-through dishwasher features an Air Concept integrated air management unit with a built-in, self-cleaning heat recovery unit. The machine is constructed entirely from type 304 (1.4301) high-grade stainless steel and includes full external stainless steel cladding. Additional features include a pressed tank with large radius coved corners, double wall construction for excellent sound and heat insulation, and sloped internal upper wash tank surfaces to prevent dripping onto clean items.

Product Features

  • Check icon90/150/240 second programmes
  • Check iconWater connection 1 x 22 mm ¾” BSP
  • Check iconSuitable for a softened cold water supply
  • Check iconWater supply pressure 1-5 bar
  • Check iconMinimum flow rate 5lt/min
  • Check iconTank fill capacity 22lt
  • Check iconFinal rinse consumption 2.6lt/basket
  • Check iconWaste connection 1 x 40 mm Ø standing waste
  • Check iconWash pump motor rating 0.75 kW
  • Check iconDetergent and rinse aid dosing pump incorporated
  • Check iconHose and cable connection kit supplied
  • Check iconDrain pump and rinse booster pump fitted as standard
  • Check iconSoft start feature on wash pump motor

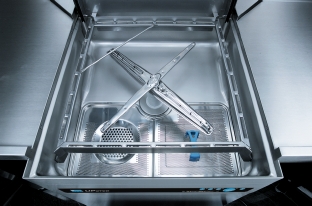

  • Check iconRotating upper and lower rinse and wash arms
  • Check iconAqua-stop system for water leak detection

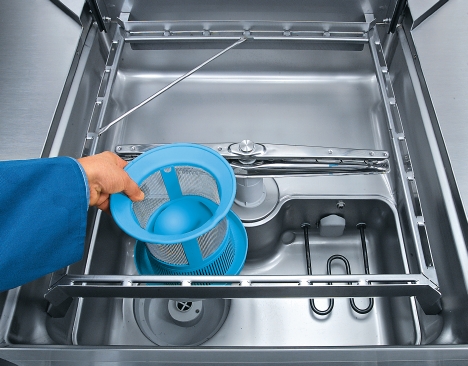

  • Check iconAktiv plus double filtration of wash water
  • Check iconPerforated covers over wash tank
  • Check iconInternal basket guides adjustable on site for corner or straight operation
  • Check iconMIKE 2 Infrared interface for exchange of data services
  • Check iconTouch sensitive control (no switches)
  • Check iconClass ‘A’ air gap with rinse booster pump
  • Check iconSelf-cleaning cycle following drain down
  • Check iconTwo (2) finger type plate racks
  • Check iconOne (1) open type cup/bowl rack
  • Check iconTwo (2) eight compartment cutlery racks
