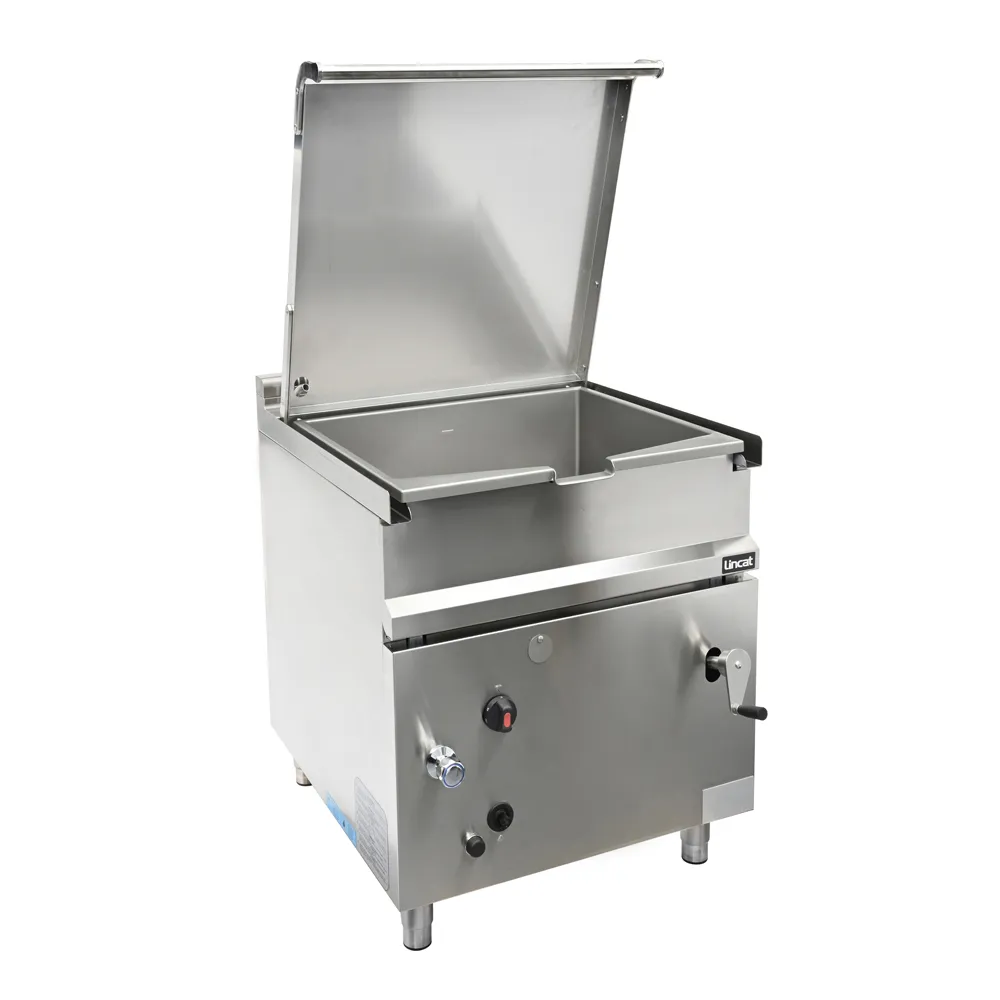

- Brand: Lincat
- Range: Phoenix
- Power Type: Gas
- Gas Type: Natural (LPG jets supplied for onsite conversion)
- Unit Type: Free-standing
- Available in UK Only: No
- UK Warranty: 2 Years Parts and Labour Warranty
- Export Warranty: Contact your local dealer
- GTIN: 5056105121930
**Power and Performance:**
- BTU per Hour: 68,250
- Total Power kW: 20
- Temperature Range °C: 45-295
- IP Rating: IPX4
- Temperature Control: Mechanical
**Capacity:**

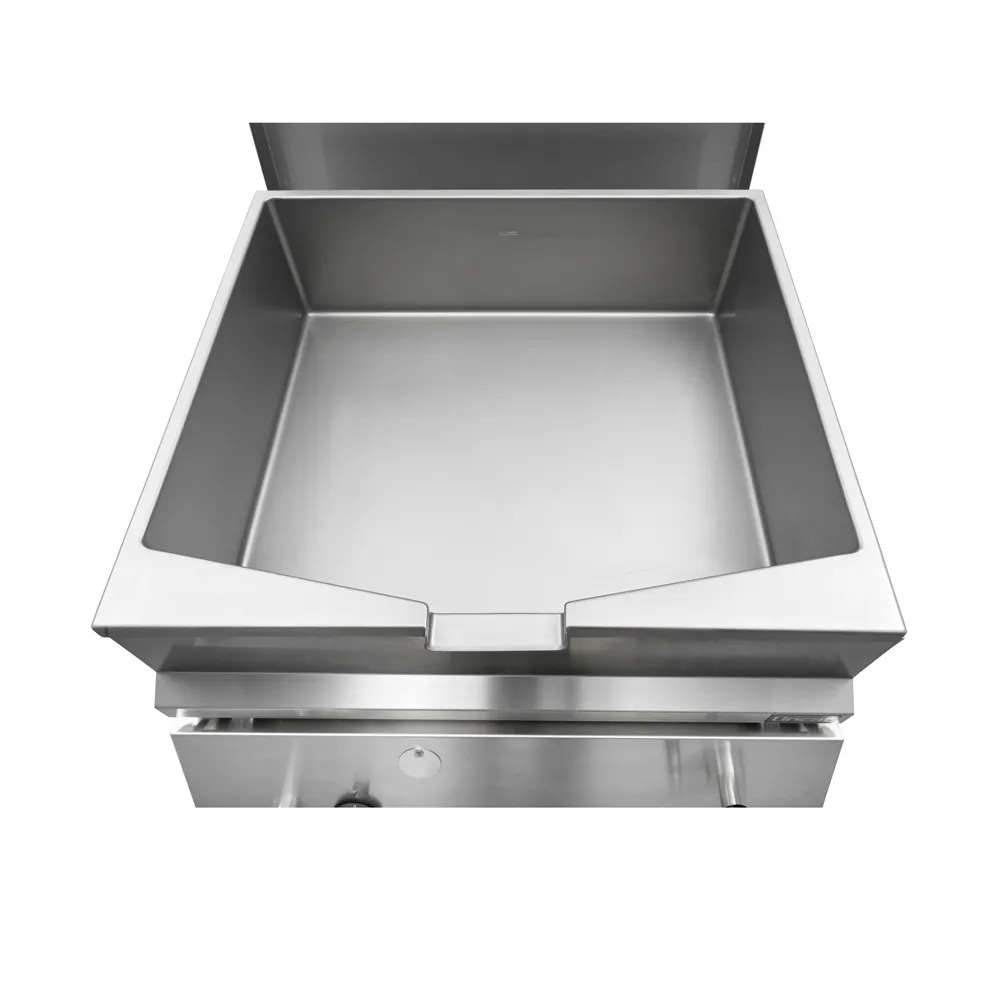

- Capacity Litres: 81
**Weights and Dimensions:**
- Unit Height (External) mm: 970
- Unit Width (External) mm: 800
- Unit Depth (External) mm: 900
- Height (Internal) mm: 200
- Width (Internal) mm: 698
- Depth (Internal) mm: 564
- Net Weight Kg: 140
**Supply Connections:**
- Requires Installation: Yes
- Requires Electrical Supply: Yes
- Requires Hardwiring: No
- Gas Connection BSP: 3/4"
- Gas Consumption at full rate Natural m³ per Hour: 2.12
- Gas Consumption at full rate Propane m³ per Hour: 1.58
- Gas Pressure Natural mbar: 20
- Gas Pressure Propane mbar: 28-30/37
- Total heat input at full rate Natural kW: 20
- Total heat input at full rate Propane kW: 20
- Total heat input at full rate Natural BTU per hour: 68,250
- Total heat input at full rate Propane BTU per hour: 68,250
- Water Connection Pressure Bar: 0.5-3
- Water Connection: 1/2"
