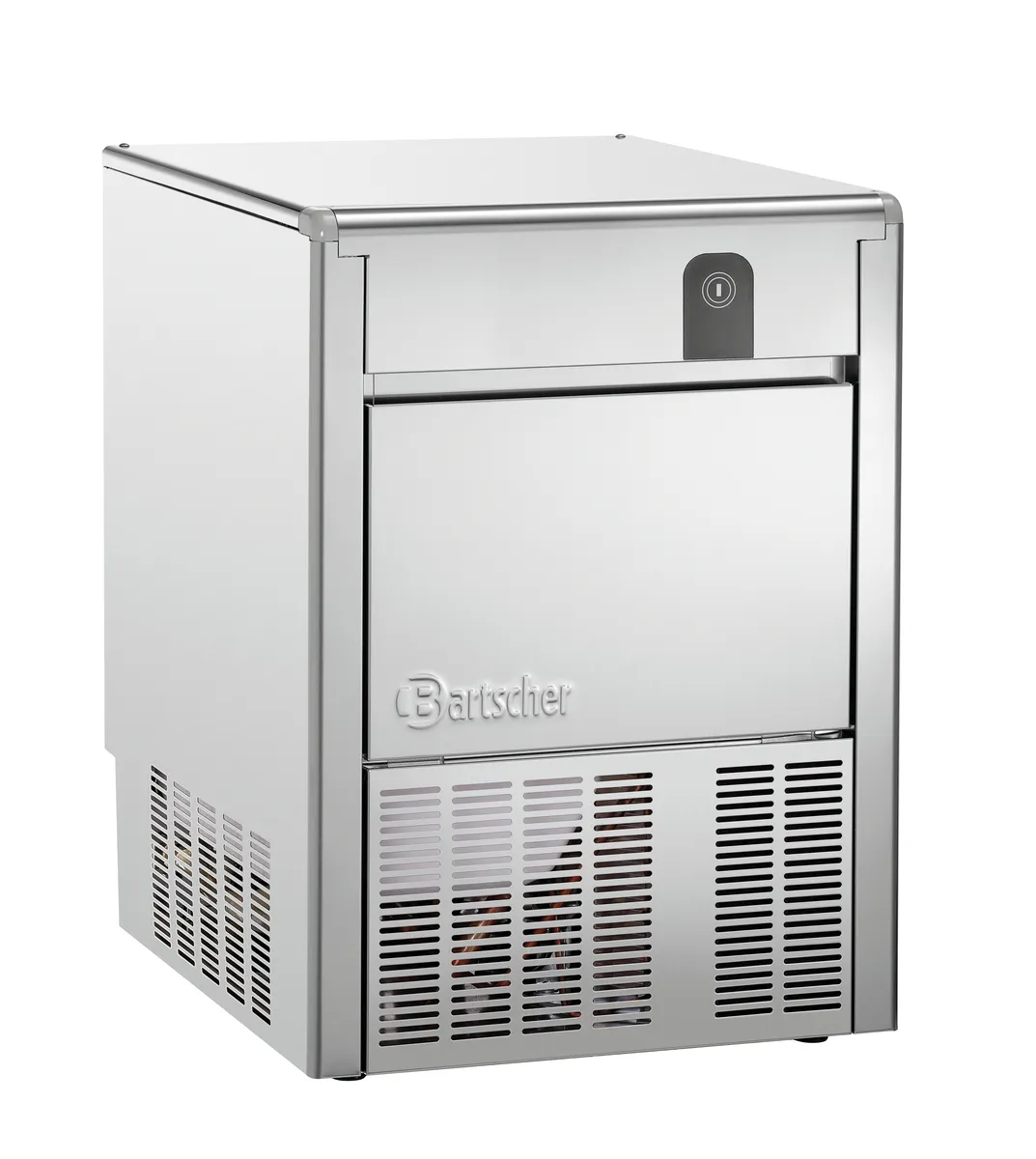

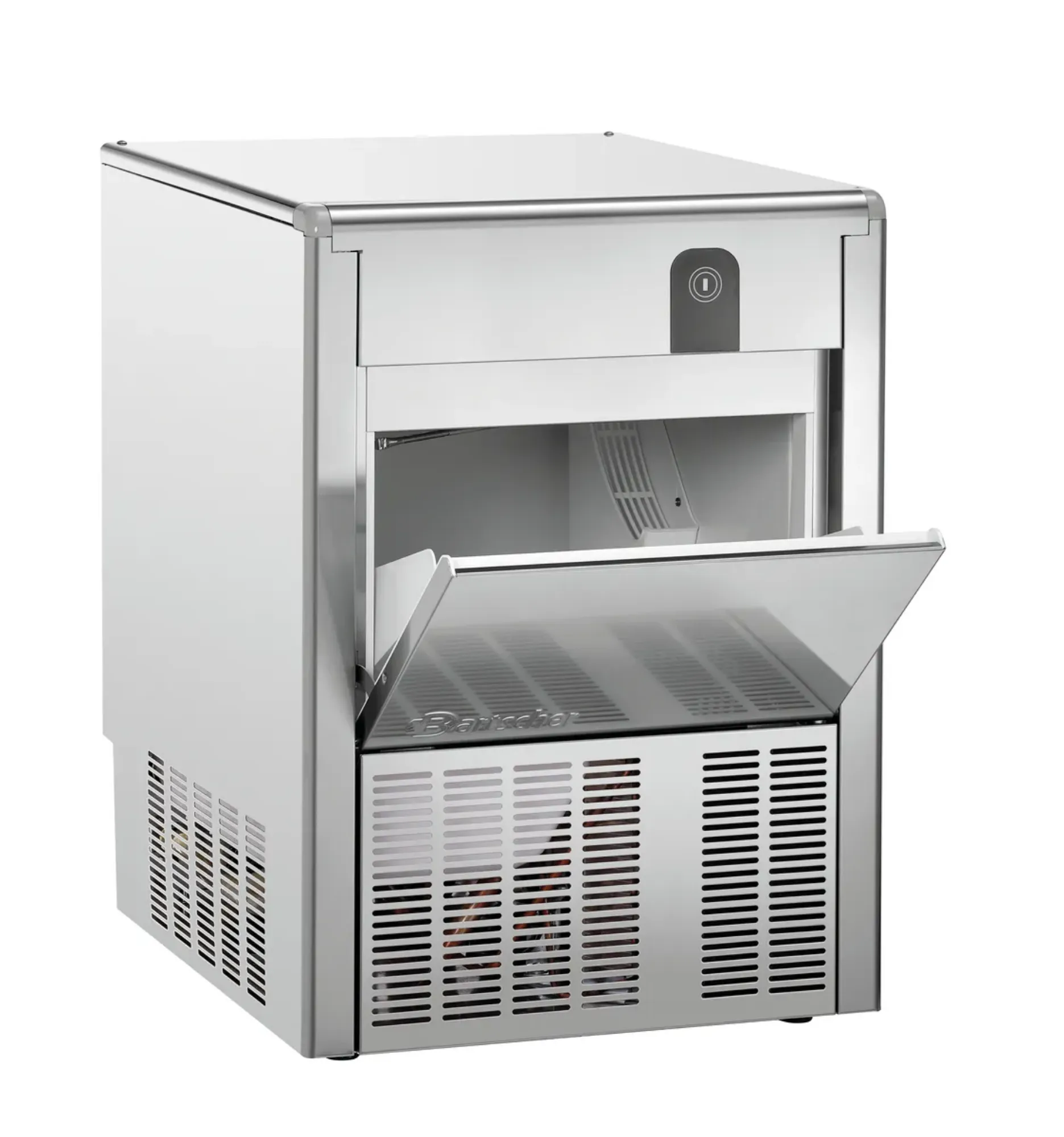

Bartscher ice cube maker Q 46

Height-adjustable feet : yes

Height-adjustable from : 690  mm

Height-adjustable to : 710  mm

Height without feet : 690  mm

Water outlet : Ø 20 mm

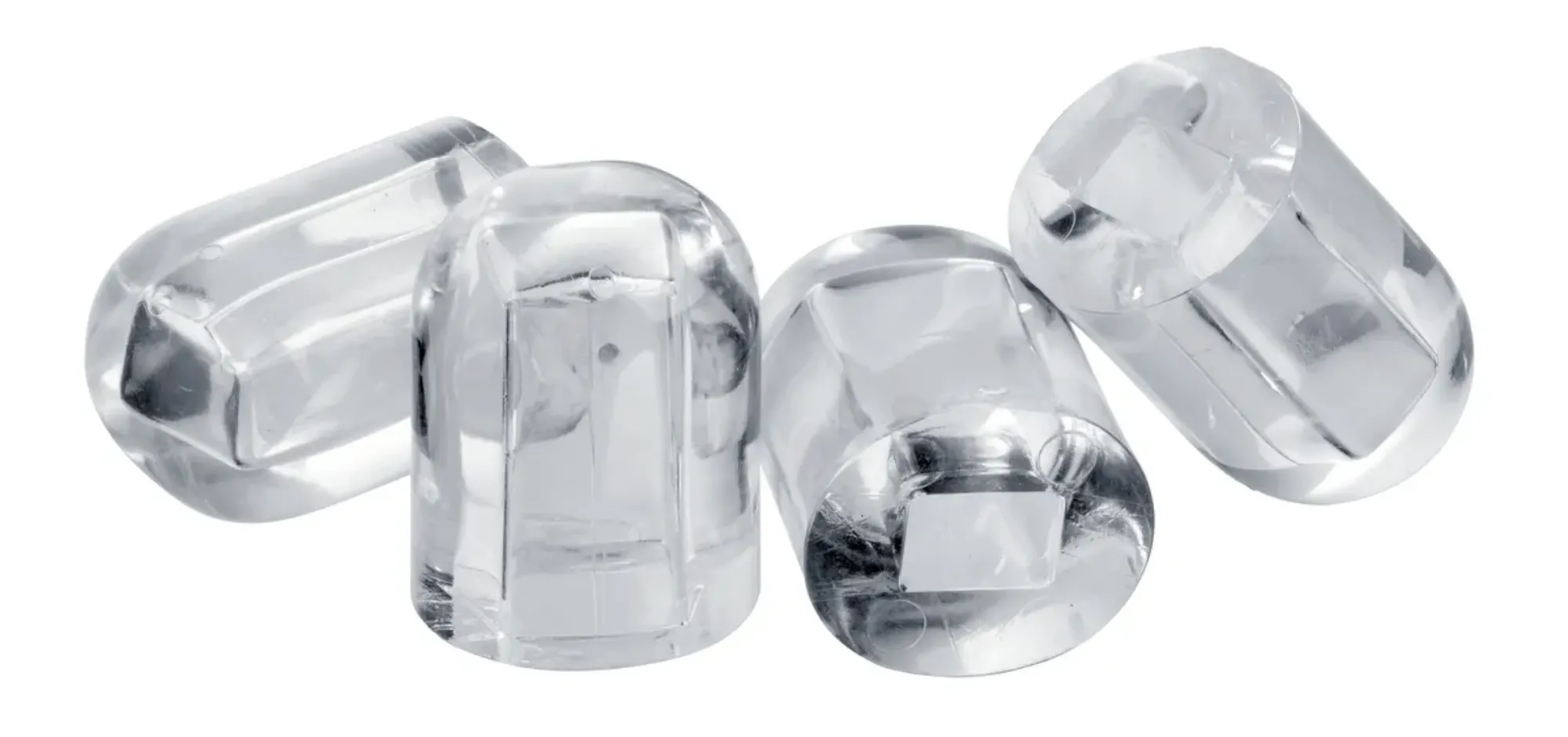

Design ice cube : Tapered form (hollow taper)

Ice cube size : 32,5 x 29 x 41 mm, 21 g

Production / work step : 35  Ice cubes

Number of ice cube sizes : 1

Power : 0.36  kW

Voltage : 230 V

Frequency : 50 Hz

Properties : -

Control lamp : yes

ON/OFF switch : yes

Control unit : Touch

Can be installed : yes

Water connection : 3/4"

Climate class : SN

Coolant : R290 / 0,080 kg

Cooling : Air cooled

Filling level sensor : yes

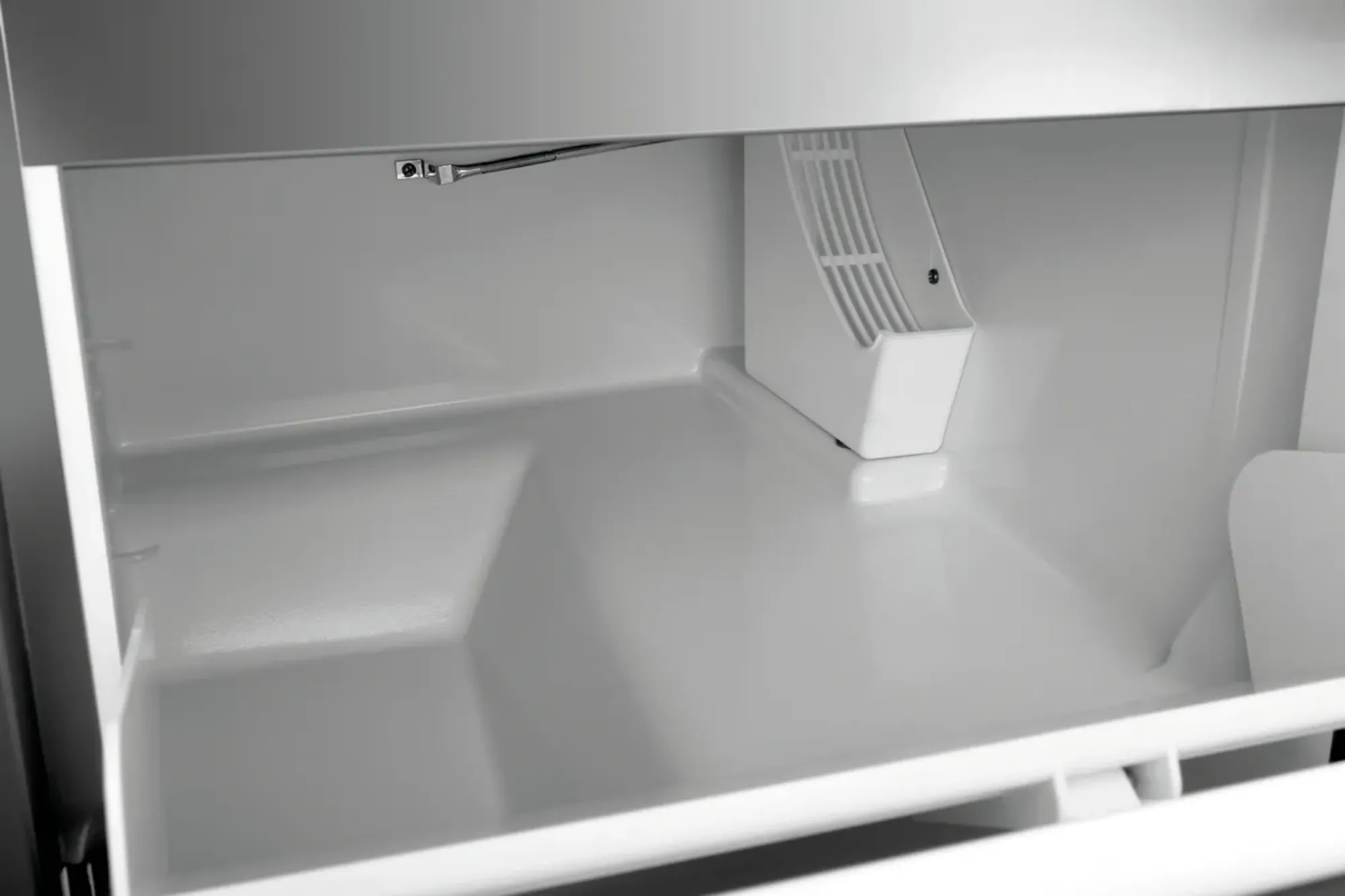

Storage container capacity : 16  kg

Production max. : 45  kg / 24 h

Production by means of : Paddle system

Colour : Silver

Including : -

Material : CNS 18/10

Important information : Clearance to all sides at least 15 cm

Width : 500 mm

Depth : 600 mm

Height : 695 mm

Weight : 39.0 kg

Download Tech Spec
