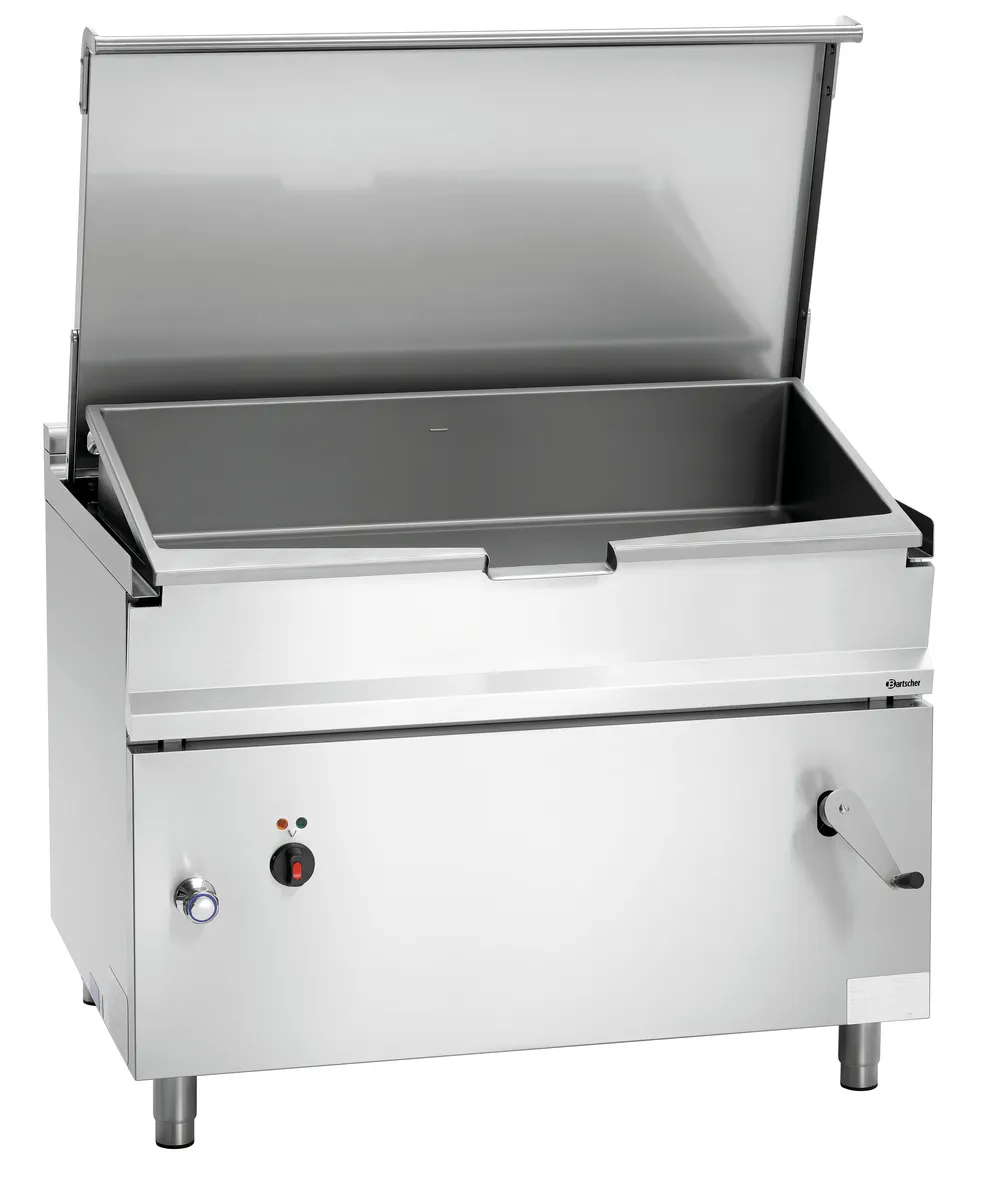

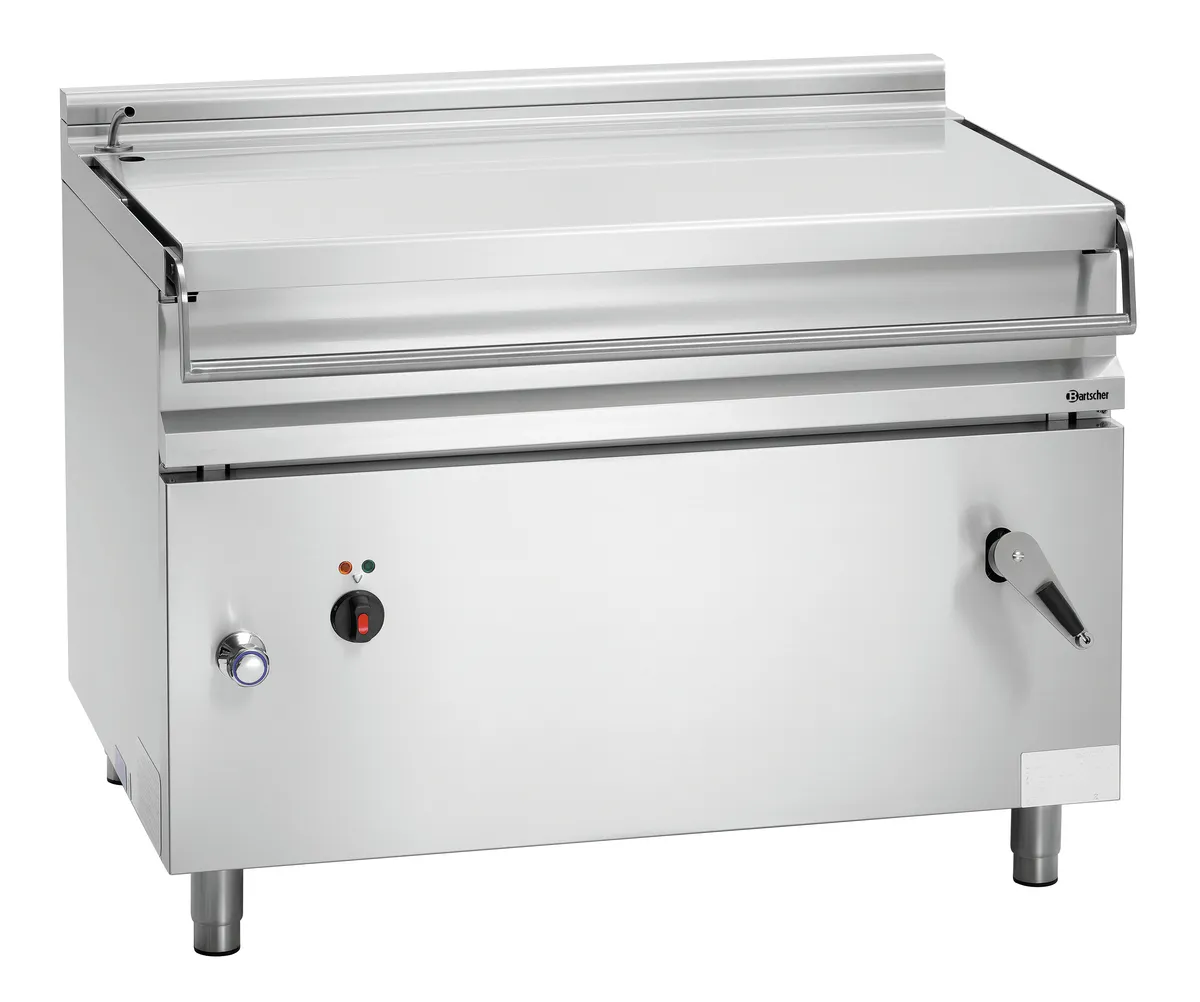

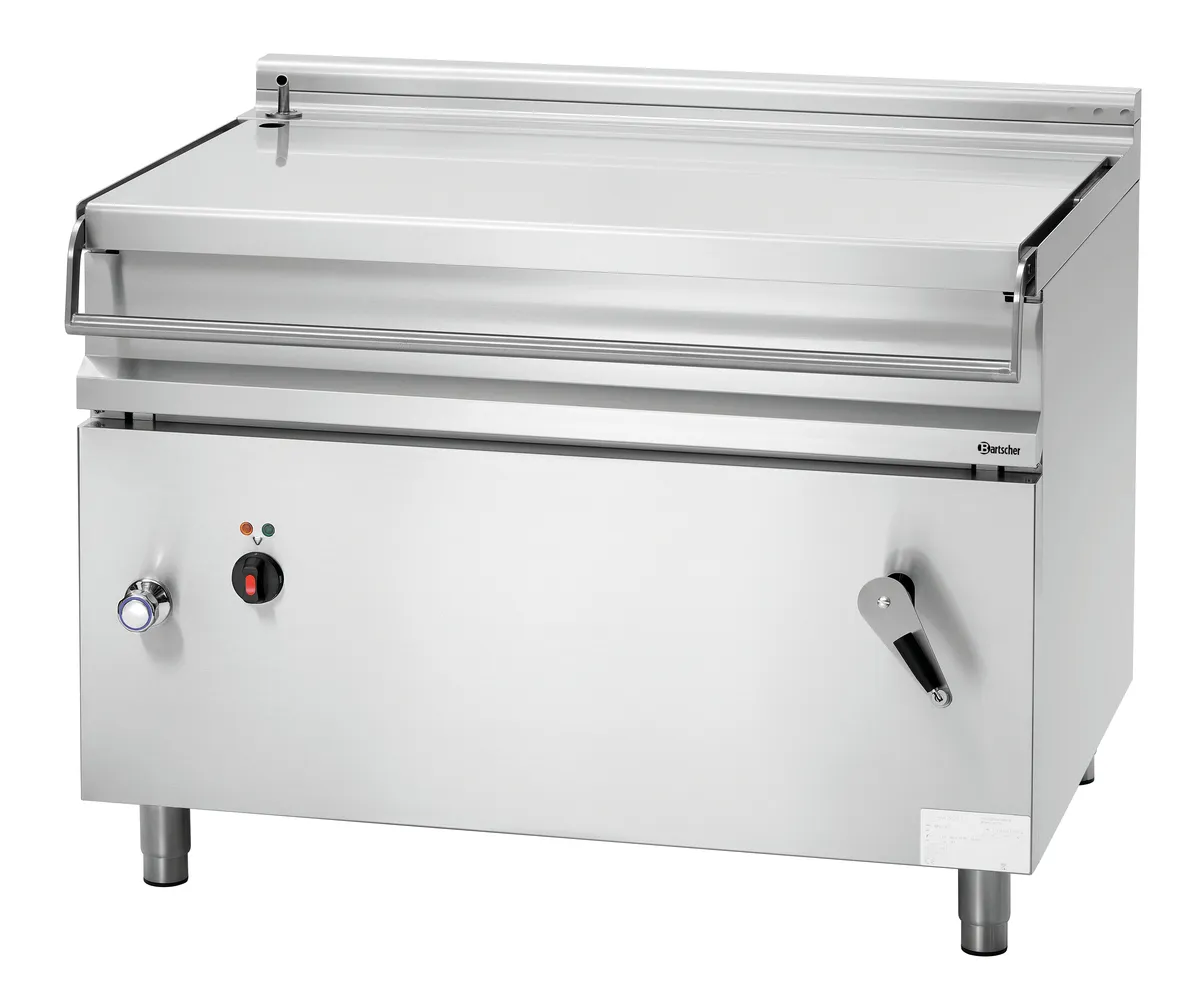

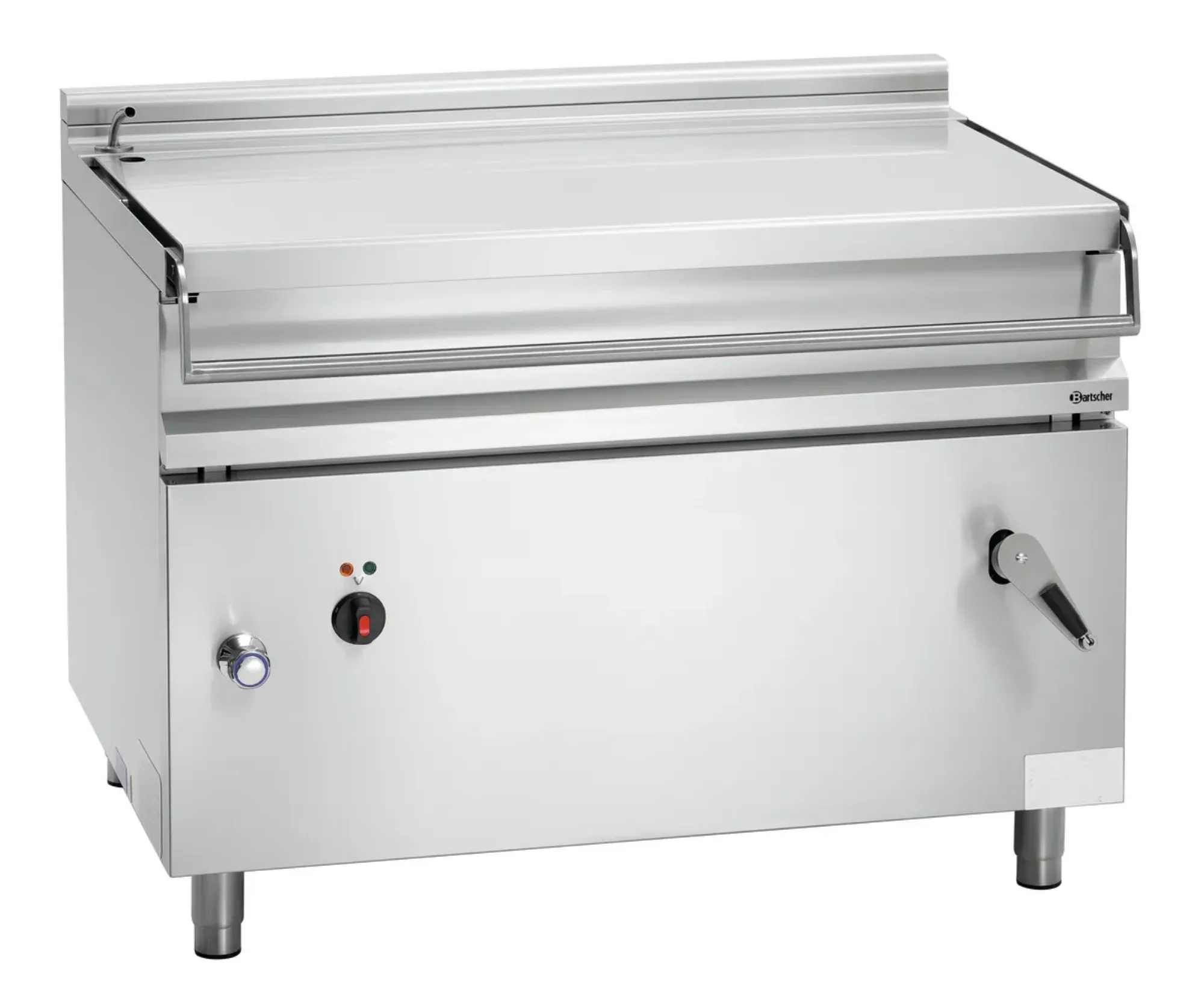

Bartscher Electric tilting frying pan E120LHK - 193062

- Power: 14.8 kW

- Voltage: 400 V

- Frequency: 50 Hz

- Equipment connection: 3 NAC

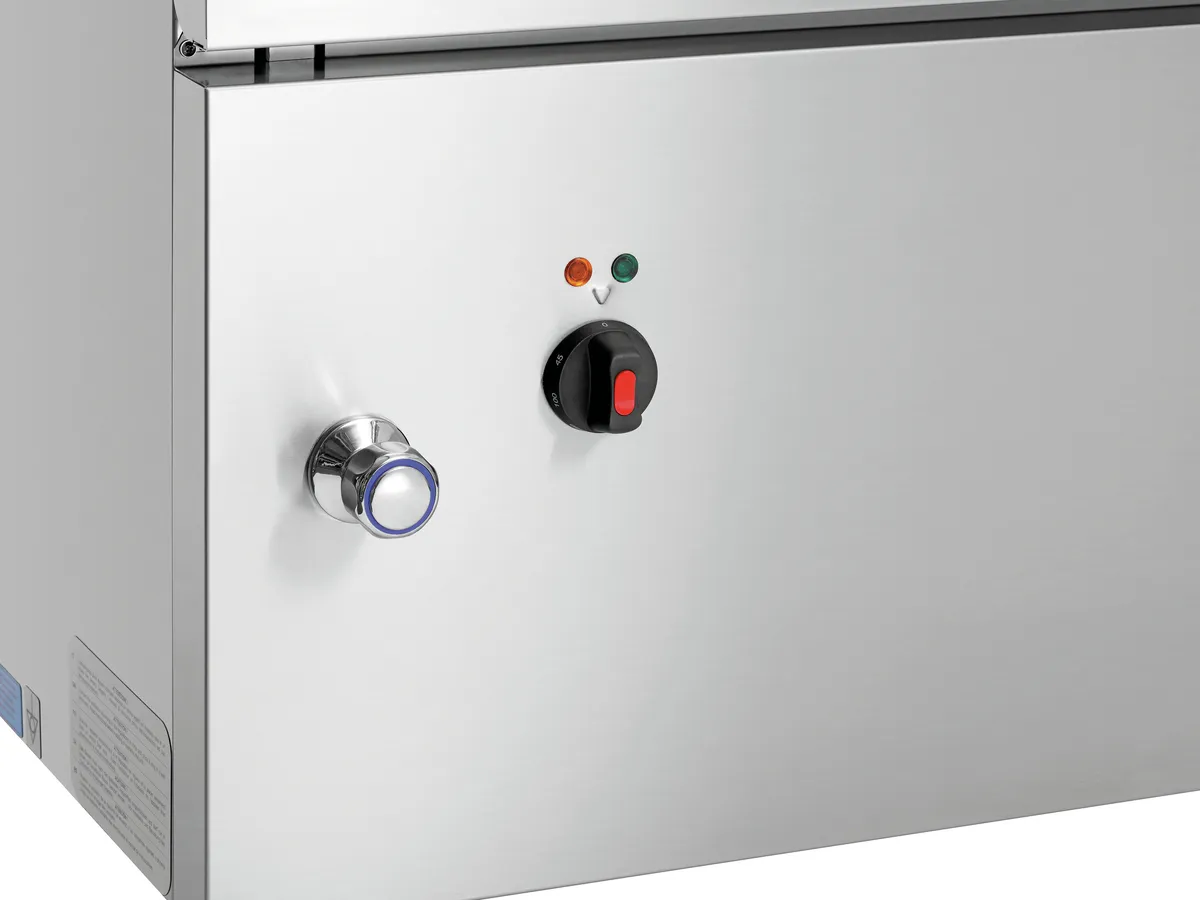

- Control lamp: Yes

- Temperature range from: 45 °C

- Temperature range to: 300 °C

- Content: 120 litres

- Useful content: 100 litres

- Series: -

- Water connection: 12 mm

- Water supply tap: Yes

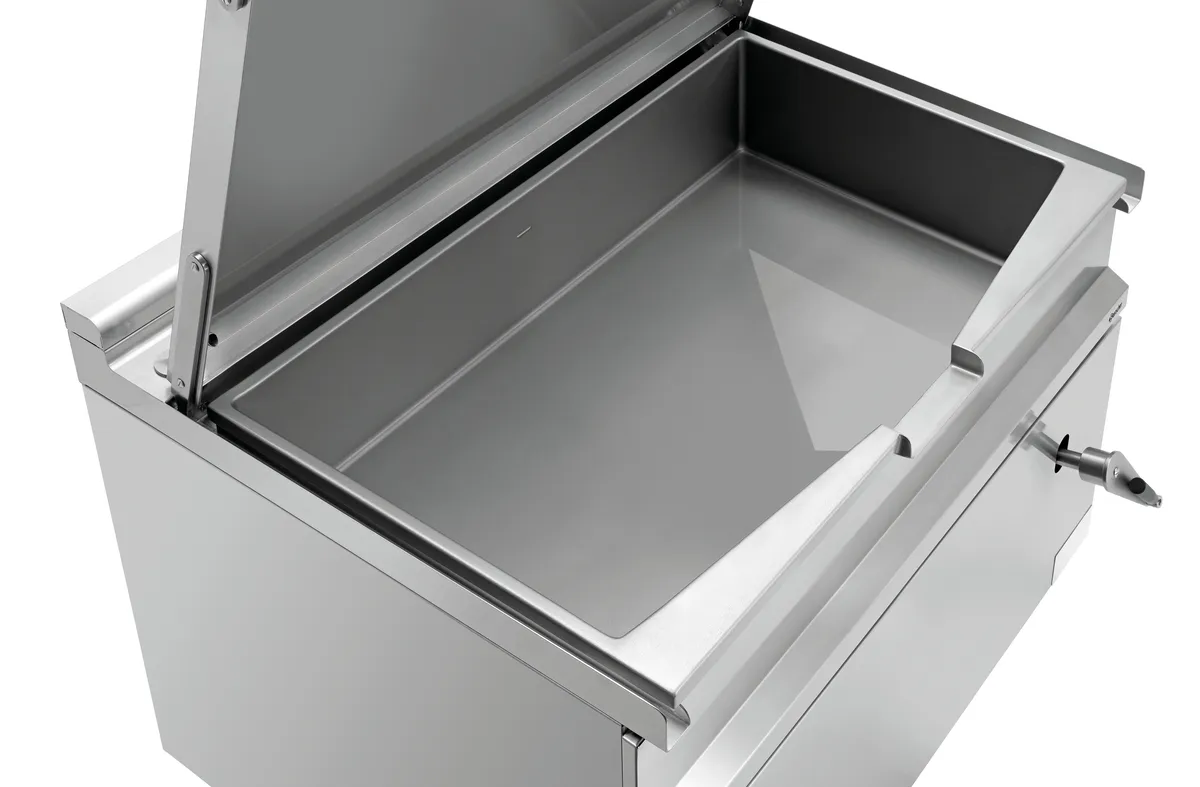

- Material crucible: Chrome-nickel steel

- Width crucible: 1090 mm

- Depth crucible: 560 mm

- Height crucible: 225 mm

- Tilting device: Manual

- Height-adjustable feet: Yes

- Height-adjustable from: 850 mm

- Height-adjustable to: 910 mm

- Properties: Power supply interruption in case of malfunction

- Heating resistors from "Incoloy 800"

- Operating mode: Electro

- Material: CNS 18/10

- Important information: -

- Width: 1200 mm

- Depth: 900 mm

- Height: 900 mm

- Weight: 237.0 kg
