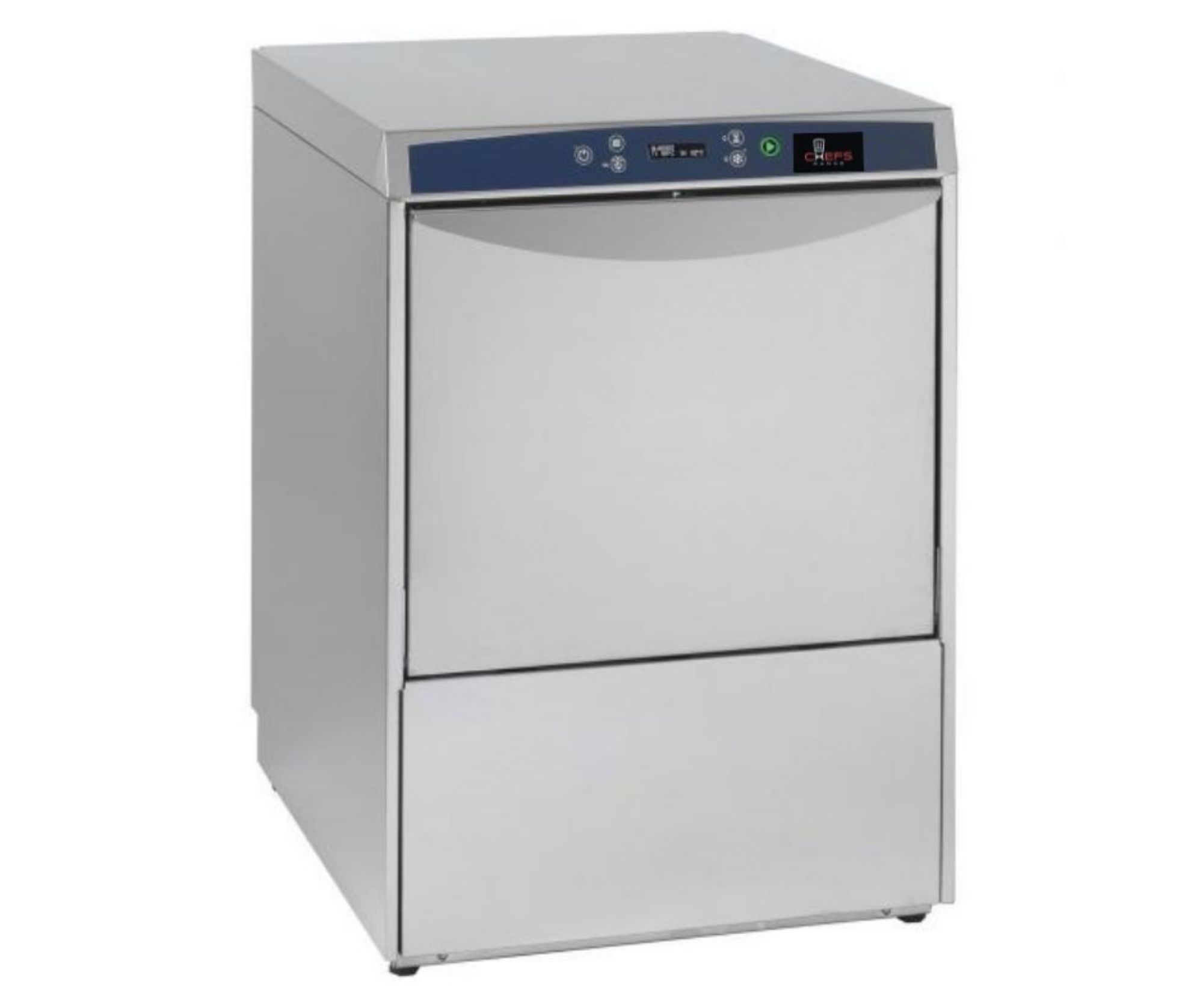

Picture of Aristarco AS60.40EPIPRS SD - 22 Plate Undercounter Dishwasher 600 x 500mm Basket with inbuilt water softener Picture of Aristarco AS60.40EPIPRS SD - 22 Plate Undercounter Dishwasher 600 x 500mm Basket with inbuilt water softener
Picture of Aristarco AS60.40EPIPRS SD - 22 Plate Undercounter Dishwasher 600 x 500mm Basket with inbuilt water softener
Commercial Undercounter Dishwashers

Aristarco AS60.40EPIPRS SD - 22 Plate Undercounter Dishwasher 600 x 500mm Basket with inbuilt water softener

2 Years Parts & 1 Year Labour
€4323.18 exVAT
€5923.80 exVAT
From €33.94/week with finance Learn more
Delivery: 3-5 days
SKU:AS60.40EPIPRSSD+

Features

Basket size; 600 x 500mm 22 plate capacity with a load height of 410mm will take 600 x 400mm or 1/1gn trays with optional tray rack
Output Upto 40 baskets/hour
Operation
Electronic controls with colour code switch
Choice of 4 washing cycles Light (1.5 mins), STD ( 2 minutes), Heavy (3 mins) Intense (9 mins)
Wash program times can be adjusted to meet customer requirements
Smart drain/Fresh wash Prior starting to rinse with clean water the drain pump automatically pumps out some of the dirtiest water at the bottom of the wash tank allowing the wash tank to be constantly filled with fresh water this helps reduce detergent usage and increases the cleaning efficiency. Further more, it's possible to select a complete change of tank water after a given amount of programmed wash cycles
Cleaning function at the end of the day an automatic cleaning cycle of the wash tanks takes place
Green function puts the machine into standby when not being used
Water consumption per wash is 2 litres
Tank capacity = 20 litres with rinse boiler capacity of 5 litres
Fitted with thermostop this only allows the machine to operate when the rinse and wash temperature are reached this guarantees hygienic washing
Hot rinse
Cold water feed (between 10 & 50ºC) with a supply pressure between 2 and 5 bar
Standard features
WRAS approved Inbuilt break tank with rinse booster pump
SD Clean water system each time a rinse cycle is activated the equivalent dirty water is pumped out from the bottom of the wash tank, this means that fresh rinse water is constantly topping up the wash tank water
Fitted with Inbuilt water softener
Electric Detergent & Rinse aid pumps
Drain pump fitted as standard
Removable primary surface tank filters collects larger items (forks, spoons etc) preventing them entering the wash tank
Plastic wash pump filter, protects the pump from risk of blockage removable for cleaning
Front control panel slides out to allow easy access for maintenance
Component diagnosis the engineer can test if all components are working correctly so reducing repair times
Automatic end of day self cleaning of water tank
Soft start operation of wash pumps increases pump life
Removable stainless steel wash and rinse arms to top and bottom
Automatic filling
Door microswitch stops wash arms rotating when door is opened
Anti back flow valve
Component diagnosis function a service engineer can check which components need attention
Construction
304 Stainless steel Double skinned body reduces noise level and saves energy by reducing heat loss
316 Marine grade stainless steel boiler
Stainless steel wash and rinse arms do not get brittle and crack like plastic ones
Preformed basket runners allow easy cleaning of the interior
Accessories supplied
2 x Plastic Plate baskets 600 x 500mm
1 x Plastic Cutlery basket
1 x Water inlet hose 2 mtrs
1 x Drain hose 2.5 mtrs
Options
Plastic 1/1gn tray basket
Stainless steel rack to hold 6 x 50mm deep 1/1gn trays
Stainless steel basket to hold 600 x 400mm Bakery trays
Stand

Product Description

This Aristarco AS60.40EPIPRS SD WRAS approved Undercounter dishwasher is manufactured with a double skinned door and body helping to reduce both Noise and Energy consumption. Fitted with Electronic controls, Green function during non washing cycles, Soft start wash pump function and detergent, rinseaid and drain pumps as standard

Warranty Information

2 Years Parts & 1 Year Labour
