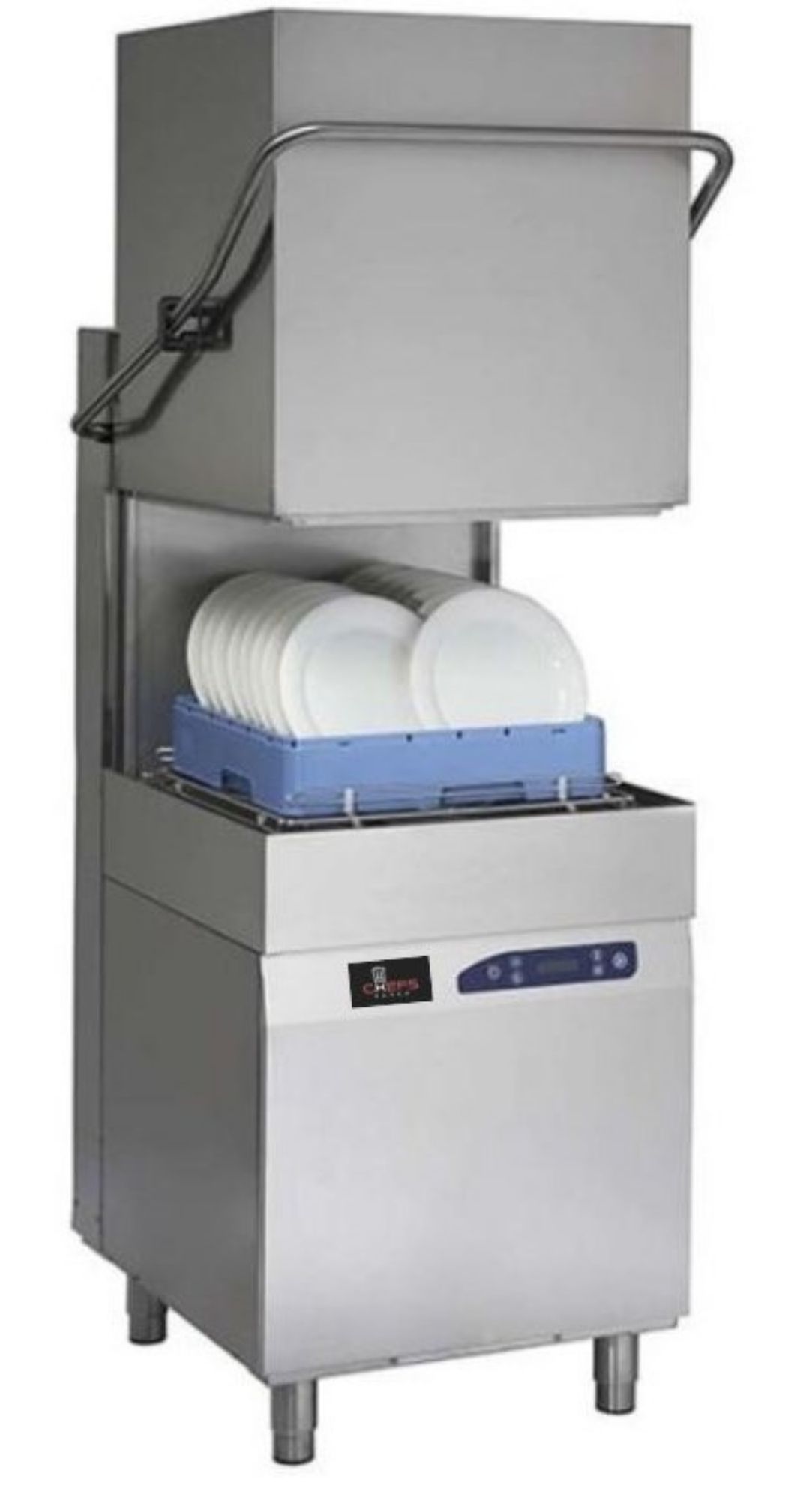

Aristarco AH800ESIPRS+ 18 Plate Hood Dishwasher with inbuilt water softener 500 x 500mm Basket

2 Years Parts & 1 Year Labour
€5243.88 exVAT
€7210.80 exVAT
From €41.16/week with finance Learn more
Delivery: 3-5 days
SKU:AH800ESIPRS+

Features

Basket size; 500 x 500mm 18 plate capacity with a load height of 450mm will take 1/1gn trays with optional basket
Output Upto 60 baskets/hour
Operation
Electronic controls with colour code switch
Choice of 4 washing cycles Light (1. mins), STD ( 2 minutes), Heavy (3 mins) Intense (9 mins)
Wash program times can be adjusted to meet customer requirements
Forced drain function this can be set to inform the operator when the water in the wash tank needs to be drained and refilled so always washing with clean water ideal for heavy use sites
Cleaning function at the end of the day an automatic cleaning cycle of the wash tanks takes place
Green function puts the machine into standby when not being used
Water consumption per wash is 2 litres
Tank capacity = 22 litres with rinse boiler capacity of 5.5 litres
Fitted with thermostop this only allows the machine to operate when the rinse and wash temperature are reached this guarantees hygienic washing
Hot rinse
Cold water feed (between 10 & 50ºC) with a supply pressure between 2 and 5 bar
Standard features
Inbuilt water softener this can be set to suit the hardness of the water
Electric Detergent & Rinse aid pumps
Removable primary surface tank filters collects larger items (forks, spoons etc) preventing them entering the wash tank
Plastic wash pump filter, protects the pump from risk of blockage removable for cleaning
Self wash vertical pump
Component diagnosis the engineer can test if all components are working correctly so reducing repair times
WRAS approved Inbuilt break tank with rinse booster pump
Automatic end of day self cleaning of water tank
Soft start operation of wash pumps increases pump life

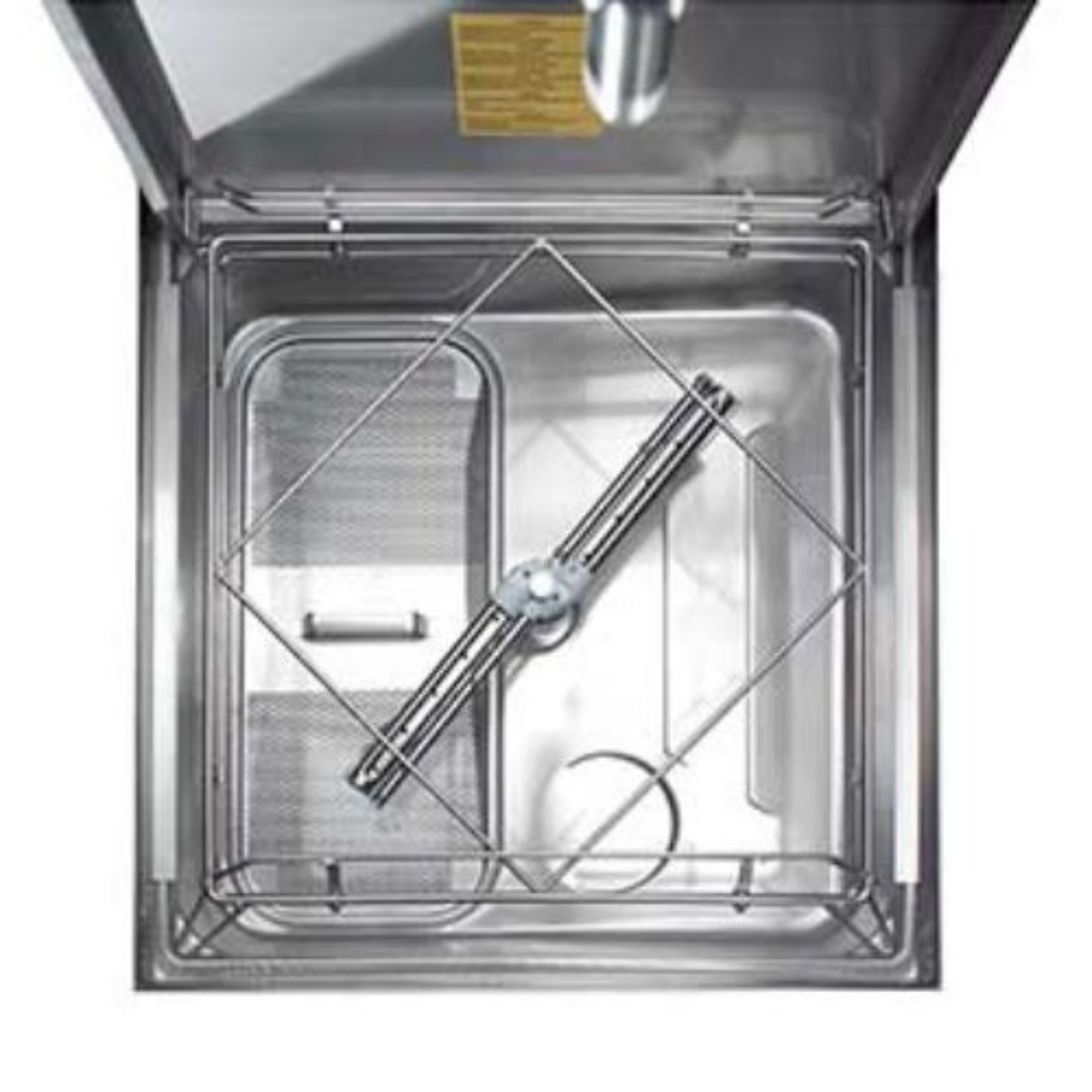

Removable stainless steel wash and rinse arms to top and bottom
Automatic filling
Auto start/stop when lid is opened/closed
Anti back flow valve
Component diagnosis function a service engineer can check which components need attention
Construction
304 Stainless steel Double skinned body (single skin lid, double skin option) reduces noise level and saves energy by reducing heat loss
316 Marine grade stainless steel boiler
Stainless steel wash and rinse arms do not get brittle and crack like plastic ones
Preformed basket runners allow easy cleaning of the interior
Accessories supplied
2 x Plastic Plate baskets 500 x 500mm
1 x Plastic Cutlery basket
1 x Water inlet hose 2 mtrs
1 x Drain hose 2.5 mtrs
Options
Drain pump to be fitted on installation
Double skinned hood
Remotely sited control board
Pre rinse & exit tables
Plastic tray basket for 1/1gn trays

Product Description

This Aristarco AH800ESIPRSDD WRAS approved Hood dishwasher is manufactured with a double skinned body helping to reduce both Noise and Energy consumption. Fitted with Inbuilt water softener, Electronic controls, Green function during non washing cycles, Soft start wash pump function, detergent and rinseaid pumps are fitted as standard, drain pump can be fitted as an option

Warranty Information

2 Years Parts & 1 Year Labour
