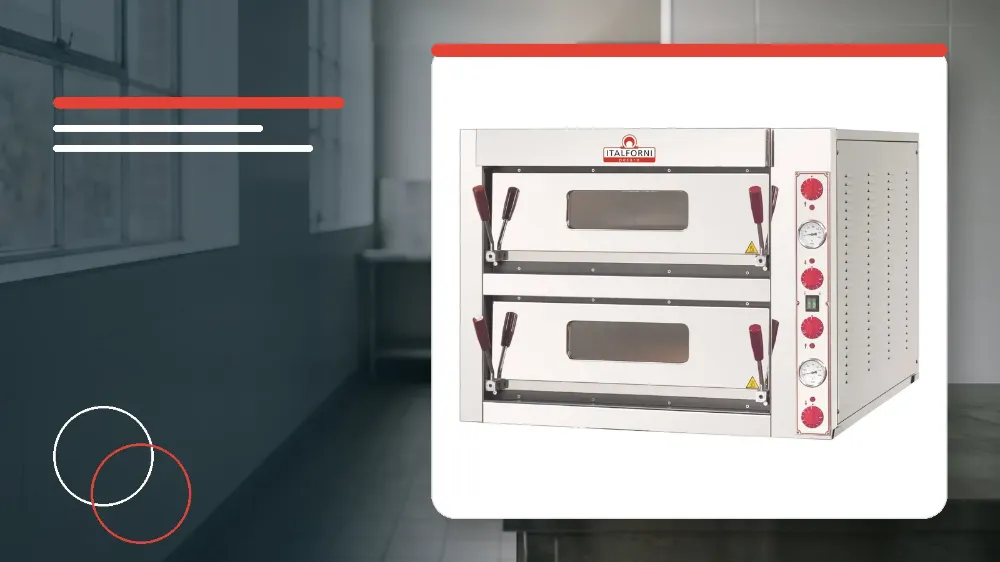

The Italforni TKA2 is a twin-deck pizza oven providing two aluminium-coated steel chambers with refractory floors, a 9 kW total power rating, and internal baking dimensions of 66 cm width by 66 cm depth per deck.
Applies to
This specification overview applies to the Italforni TKA2 twin-deck pizza oven.
Chamber Capacity and Internal Dimensions
The oven provides two cooking chambers constructed from aluminium-coated steel, each fitted with a high-performance refractory cooking floor.
Each internal chamber measures 15 cm in height (totalling 15 + 15 cm across both decks), 66 cm in width, and 66 cm in depth.
External Dimensions and Physical Footprint
The exterior footprint of the oven measures 70 cm in height, 91 cm in width, and 84 cm in depth.
The total net weight of the twin-deck unit is 122 kg.
Electrical Power and Temperature Specifications
The oven operates on a 400V three-phase 50–60Hz electrical supply with a total power rating of 9 kW and an average consumption of 4.5 kW/h.
Heating is delivered by top and bottom stainless-steel armoured elements with independent top and bottom power controls across an operating temperature range of 0 to 450 °C.
Core Build and Enclosure Features
The unit includes thermal insulation, high-resistance halogen chamber lamps, an integrated hood module, and counter-balanced doors with single tempered glazing.
It comes standard with an electromechanical control panel and can reach a maximum cooking temperature of 450 °C.
