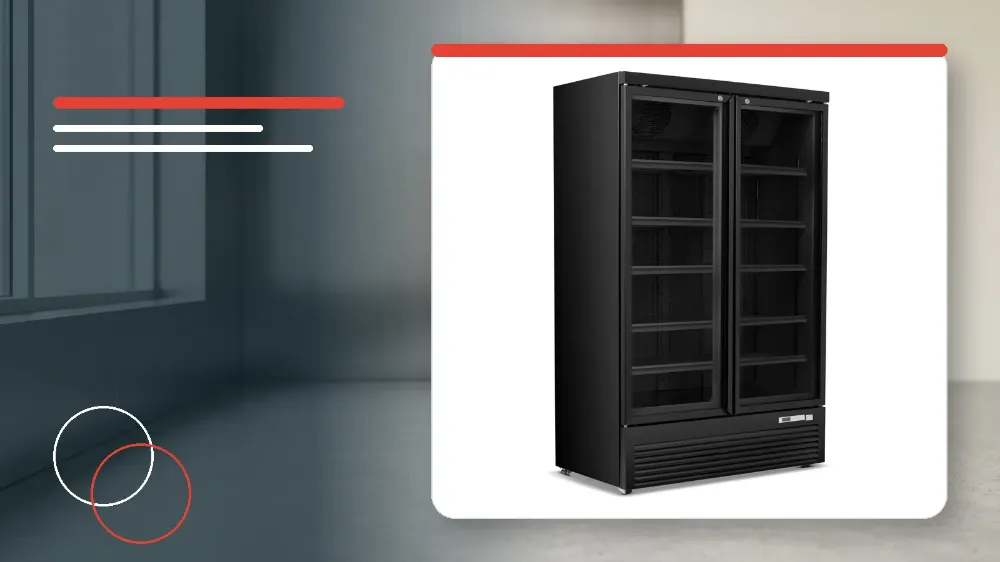

The Blizzard BMF2 is a 1006-litre double hinged glass door merchandiser operating across a temperature range of -15°C to -18°C.
Applies to
This specification overview applies to the Blizzard BMF2 double glass door upright display freezer.
Before you start
- Ensure the installation site provides adequate clearance for unit dimensions of 2003 mm height, 1250 mm width, and 710 mm depth.
- Verify that a standard 13-amp electrical power supply is available at the planned operating location.
Cabinet Construction and Merchandising Features
The merchandiser is constructed with a matt black exterior and interior finish.
The cabinet incorporates self-closing double glazed doors equipped with replaceable gaskets and standard fitted door locks.
Merchandise display is enhanced by internal LED illumination, shelf pricing strips, and ten shelves.
The appliance base is equipped with low height manoeuvring rollers to assist with cabinet placement.
Refrigeration Performance and Technical Specifications
Cabinet temperature is monitored and managed via an integrated digital membrane controller and temperature display.
The system utilises R290a refrigerant to deliver an operating temperature range between -15°C and -18°C.
The appliance provides a gross internal storage capacity of 1006 litres with an unladen weight of 270 kg.
Energy performance is designated by an energy rating value of 1472 and annual power consumption of 6377 kWh per annum.
