The Blizzard BMC3 display chiller provides a 1664 L gross capacity across 3 doors and 15 shelves, operating between -1°C and +10°C with R290a refrigerant and requiring a standard 13-amp power supply.
Applies to

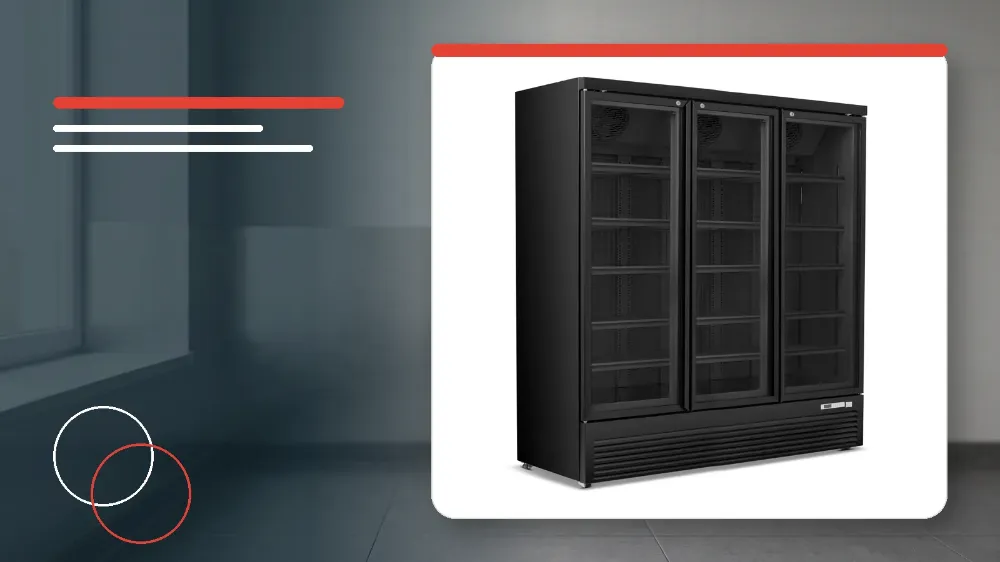

This specification overview applies to the Blizzard BMC3 triple glass door display chiller.
Before you start
- The Blizzard BMC3 requires a 13-amp electrical supply and sufficient clearance for dimensions of H2003 x W1880 x D710 mm.
Technical Specifications and Dimensions
The Blizzard BMC3 unit measures H2003 x W1880 x D710 mm and has an unladen weight of 235 kg.
The refrigeration system operates from -1°C to +10°C using R290a refrigerant, drawing 1975 kWh per annum on a 13-amp power connection.
The cabinet provides a total gross capacity of 1664 L across 3 doors with 15 shelves included.
Cabinet Construction and Standard Features
The chiller is styled with a matt black exterior and interior, illuminated by internal LED lighting.
It includes shelf pricing strips along with self-closing double glazed doors featuring replaceable gaskets and standard fitted door locks.
The unit incorporates a digital membrane controller and temperature display for monitoring internal conditions.
Integrated low height rollers are fitted to assist with installation and maintenance positioning.
