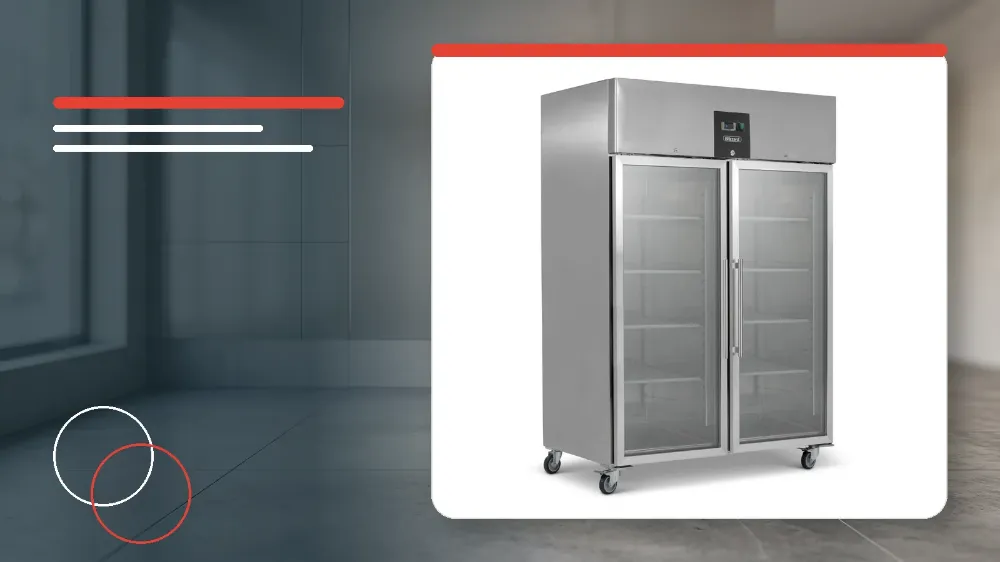

The Blizzard BF2SSCR is a ventilated 1300-litre upright commercial freezer featuring 304 stainless steel construction, 8 adjustable GN2/1 shelves, an operating temperature range of -15°C to -18°C, and heated double-glazed self-closing doors.
Applies to
This guide applies directly to the Blizzard BF2SSCR ventilated double glass door gastronorm freezer.
Before you start
- The appliance operates on a 13-amp power supply.
- The unit has an overall weight of 226 kg.
Technical Dimensions and Electrical Ratings
The freezer dimensions are 2010 mm in height, 1480 mm in width, and 858 mm in depth.
The unit operates with a 780 W power rating and consumes 5520 kWh per annum.
The refrigeration system uses R290 refrigerant to maintain a operating temperature range of -15°C to -18°C.
Capacity and Shelf Configuration
The cabinet provides a total gross capacity of 1300 litres.
The storage system is supplied with 4 adjustable GN2/1 shelves per door, providing 8 shelves in total with dimensions of 535 x 650 mm.
Internal cabinet corners are rounded to aid cleaning.
Door Design and Cabinet Features
The cabinet features high grade 304 stainless steel exterior and interior construction.
The double glazed doors are self-closing and include a dwell position.
Condensation is prevented on the doors by a heated element built into the glazing.
The internal compartment is fitted with LED lighting.
