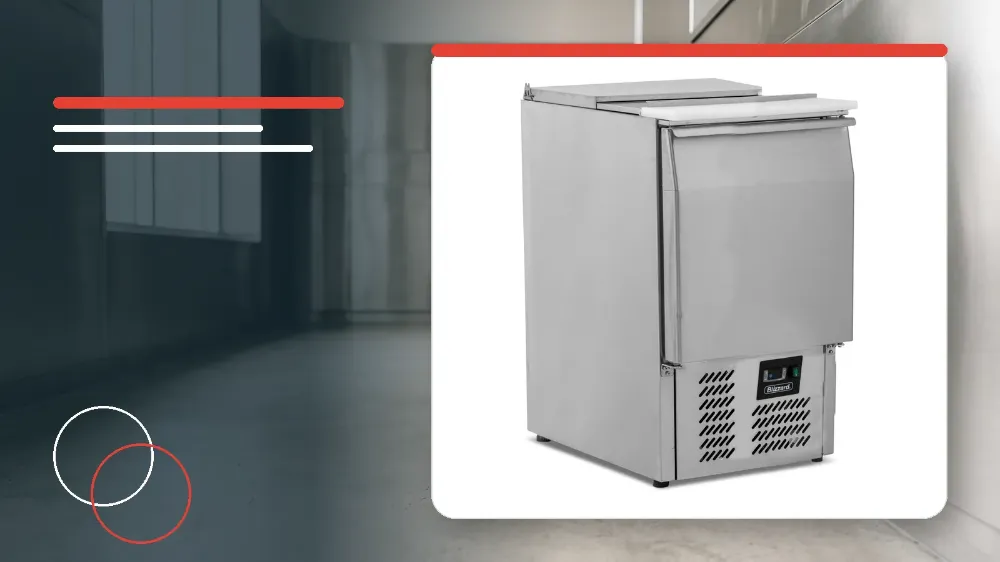

The Blizzard BCC1-PREP is a compact prep counter measuring H876 x W435 x D700 mm, featuring a 109L gross internal capacity and a top well that accommodates 1 x GN1/1 container up to 150mm deep.
Applies to
This guide applies specifically to the Blizzard BCC1-PREP single-door refrigerated prep counter.
Before you start
- Ensure the unit is connected to a dedicated 13A power supply.
Safety warnings
- Do not exceed the 150mm maximum container depth when placing pans into the top well.
Dimensions and Technical Specifications
The counter measures 876mm in height, 435mm in width, and 700mm in depth, with an overall weight of 47kg.
It operates with a power rating of 120W using R600a refrigerant across an operating temperature range of +2°C to +8°C.
The refrigerated storage area provides a gross holding volume of 109L.
Capacity and Interior Configuration
The top well holds a 1 x GN1/1 pan configuration protected by a hinged lid cover.
The internal cabinet is fitted with one adjustable GN1/1 shelf behind a self-closing door.
Construction and Preparation Features
High-grade AISI 304 stainless steel is utilised across both the exterior and interior surfaces.
Internal corners are rounded to assist with cleaning routines.
The unit includes a 135mm deep polypropylene cutting board and adjustable feet for level placement.
