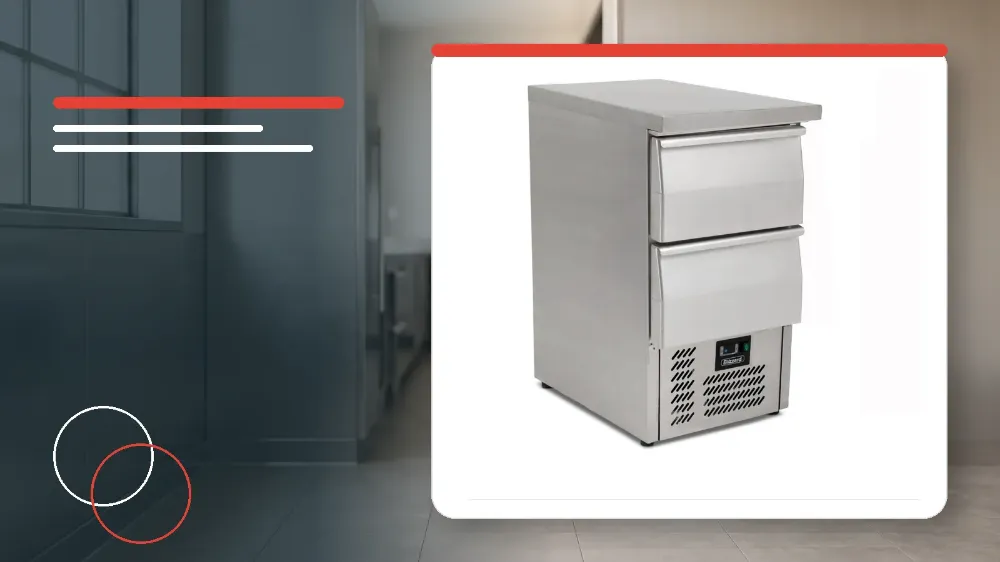

The Blizzard BCC1-2D is a compact counter refrigerator featuring a 109-litre gross capacity across two drawers that accept GN1/1 containers, operating between +2°C and +8°C.
Applies to
This guide applies to the Blizzard BCC1-2D compact double drawer counter refrigerator.
Before you start
- Ensure the unit is disconnected from its 13amp power supply before attempting to remove the condenser filter or replace drawer gaskets.
Safety warnings
- Do not use harsh chemicals that could damage the AISI 304 stainless steel.
- Do not attempt any internal electrical, gas, microwave high-voltage, refrigerant or sealed-system work.
Core Specifications and Dimensions
The Blizzard BCC1-2D compact counter refrigerator provides a gross storage capacity of 109 litres.
The unit features two storage drawers.
This compact unit measures 876 millimetres in height, 435 millimetres in width, and 700 millimetres in depth.
The refrigerator weighs 53 kilograms.
It requires a 13amp power supply.
The appliance has a power usage of 120 watts.
This model consumes 799 kilowatt-hours per annum.
Cooling and Control Features
The refrigerator operates at a temperature range of +2°C to +8°C.
It utilises R600a refrigerant.
The unit features 35-millimetre insulation.
The appliance includes an integrated digital controller.
Design and Maintenance Features
The exterior is constructed from high-grade AISI 304 stainless steel.
The interior is constructed from high-grade AISI 304 stainless steel.
The two storage drawers accept GN1/1 containers.
The internal corners are rounded to aid cleaning.
The unit comes equipped with adjustable feet.
The drawer gaskets are replaceable.
The condenser filter is easily removable for cleaning.
