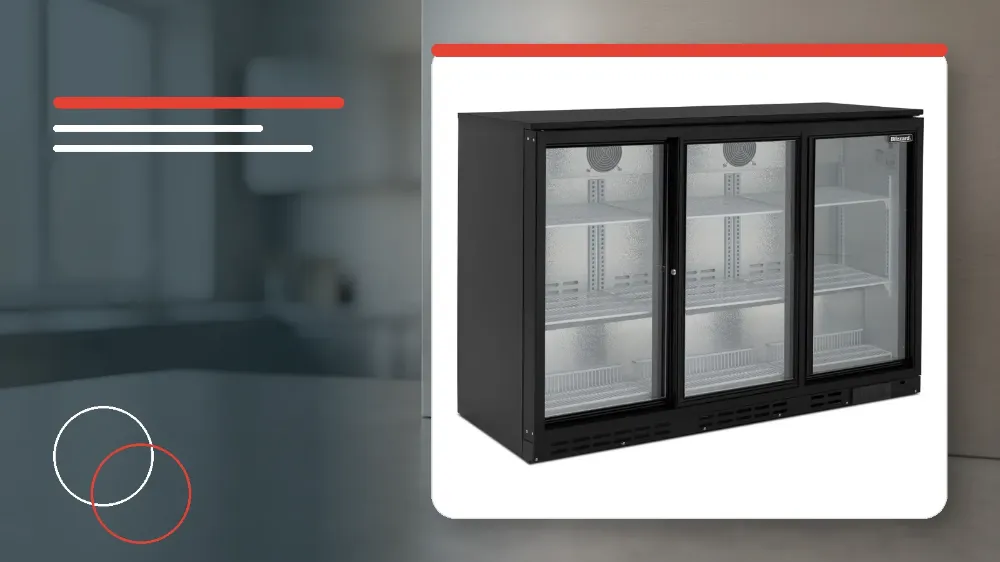

The Blizzard BAR3SL is a commercial three-door bottle cooler offering a 310-litre gross capacity, internal LED illumination, and a temperature range of +4°C to +12°C.
Applies to
Blizzard BAR3SL triple sliding glass door bottle cooler.
Before you start
- Ensure the unit is connected to a standard 13amp power supply.
- Do not exceed the recommended capacity of 338 bottles or block the sliding doors.
- Use only compatible Blizzard replacement parts such as gaskets and shelves.
Safety warnings
- Do not perform any internal electrical, gas, microwave high-voltage, refrigerant or sealed-system work.
Design and Build Features
The bottle cooler features a black laminated exterior.
The interior of the appliance is constructed from stippled aluminium.
The unit includes internal LED illumination to display your stored beverages clearly.
The BAR3SL model is equipped with three self-closing double glazed doors.
A dedicated lock is fitted to each door to secure your inventory.
Technical Specifications
The BAR3SL model has a gross internal capacity of 310 litres, which holds up to 338 bottles.
The appliance operates within a designated temperature range of +4°C to +12°C.
The internal cooling system uses R600a refrigerant.
The physical dimensions of the BAR3SL model are 900 mm in height, 1353 mm in width, and 511 mm in depth.
The empty unit weighs exactly 91 kg.
The bottle cooler requires a standard 13amp power supply for safe operation.
The electrical power usage for this model is rated at 320W.
The appliance consumes 1119 KWH per annum under standard operating conditions.
Standard Inclusions and Optional Extras
The BAR3SL model is supplied with six shelves as part of its standard configuration.
An optional extra for the BAR3SL is an additional standard shelf and four clips.
Operators can also purchase a wine shelf and four clips as an optional extra for the BAR3SL.
A replacement gasket is available to purchase as an optional extra for the BAR3SL model.
